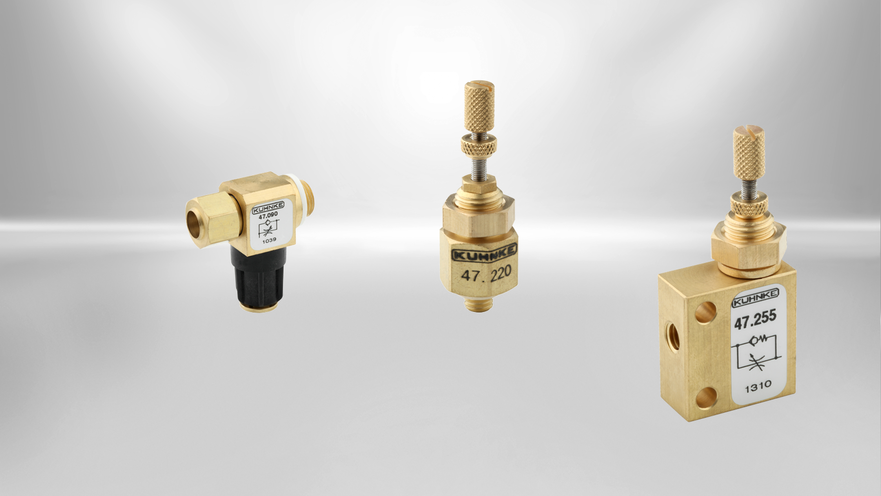

Flow regulators and check valves
Check valves, throttle valves and quick exhaust valves
Logic valves can be used to implement pneumatic shut-off, flow and check functions in a simple way. Kendrion offers function fittings like flow regulators integrated in a tube fitting or one-way flow restrictors integrated in a banjo fitting are available with different connection options as M5 or G1/8. Customized special designs are available on request.
The Kendrion check and flow control valves were formerly known under the name Kuhnke.
Products
(25)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Pressure range (bar)
ascending
descending
|
Nominal orifice (mm)
ascending
descending
|
Medium
ascending
descending
|
Type of pneumatic connection
ascending
descending
|
Valve type
ascending
descending
|
Ambient temperature (°C)
ascending
descending
|
Materials
ascending
descending
|
Identification number
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

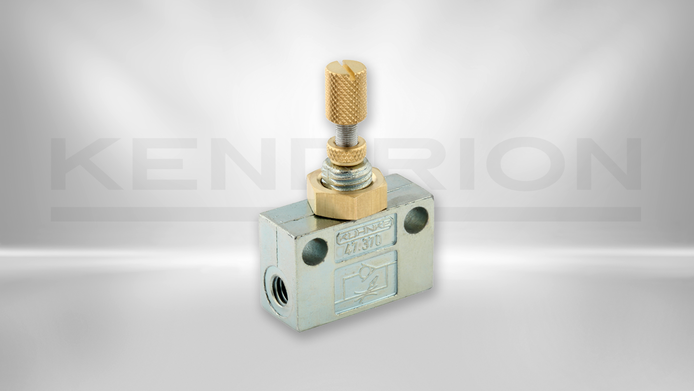

Logic Element and Unit (also dual-pressure Valve)
|
47.002 | 0 - 8 | 2 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: Al, seal: NBR | - | to the product |
|
OR Unit (also shuttle valve)
|
47.003 | 0 - 8 | 2 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: Al, seal: NBR | - | to the product |
|

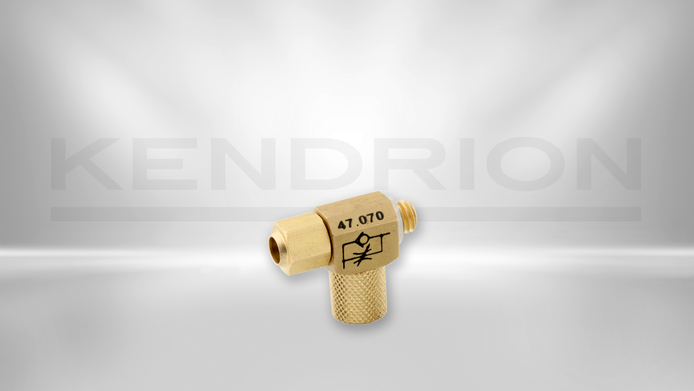

One-Way Flow Restrictor (incl. nut)
|
47.070 | 0 - 12 | 2 | Neutral gases | M5, tube 5 x 1 | Check valves and flow regulators | -10 ... +70 | - | - | to the product |
|
One-Way Flow Restrictor (incl. nut)
|
47.071 | 0 - 12 | 2 | Neutral gases | M5, tube 5 x 1 | Check valves and flow regulators | -10 ... +70 | - | - | to the product |
|

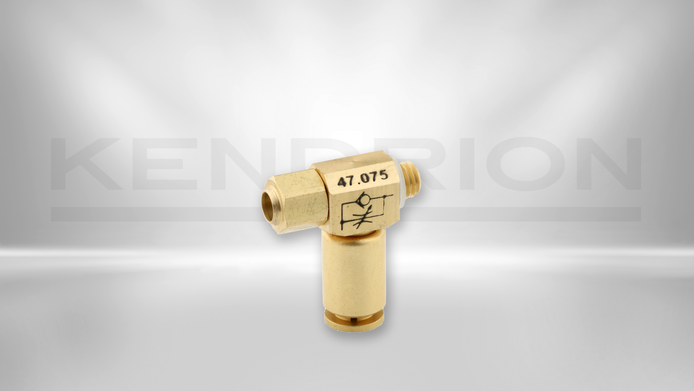

One-Way Flow Restrictor (with push-in fitting)
|
47.075 | 0 - 12 | 2 | Neutral gases | M5, tube 4x1 (4 x 0.65) | Check valves and flow regulators | -10 ... +70 | - | - | to the product |
|
One-Way Flow Restrictor (with push-in fitting)
|
47.076 | 0 - 12 | 2 | Neutral gases | M5, tube 4x1 (4 x 0.65) | Check valves and flow regulators | -10 ... +70 | - | - | to the product |
|
One-Way Flow Restrictor (incl. nut)
|
47.080 | 0 - 12 | 2 | Neutral gases | M5, tube 6 x 1 | Check valves and flow regulators | -10 ... +70 | - | - | to the product |
|

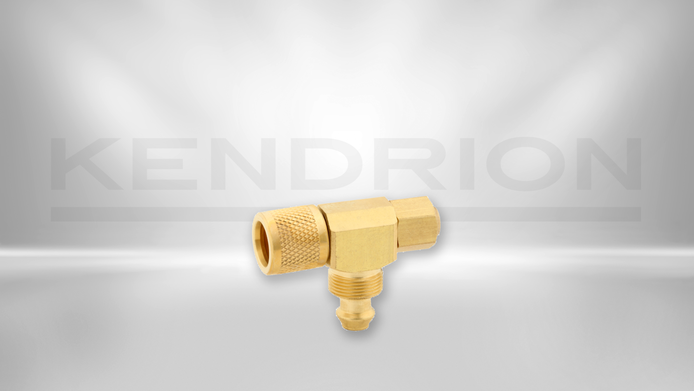

One-Way Flow Restrictor (incl. nut)
|
47.081 | 0 - 12 | 2 | Neutral gases | M5, tube 6 x 1 | Check valves and flow regulators | -10 ... +70 | - | - | to the product |
|

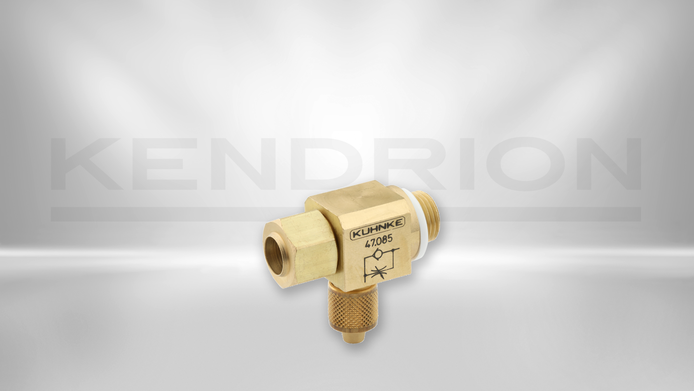

One-Way Flow Restrictor (incl. nut)
|
47.085 | 0 - 12 | 2 | Neutral gases | G1/8, tube 6 x 1 | Check valves and flow regulators | -10 ... +70 | - | - | to the product |
|
One-Way Flow Restrictor (incl. nut)
|
47.086 | 0 - 12 | 2 | Neutral gases | G1/8, tube 6 x 1 | Check valves and flow regulators | -10 ... +70 | - | - | to the product |
|

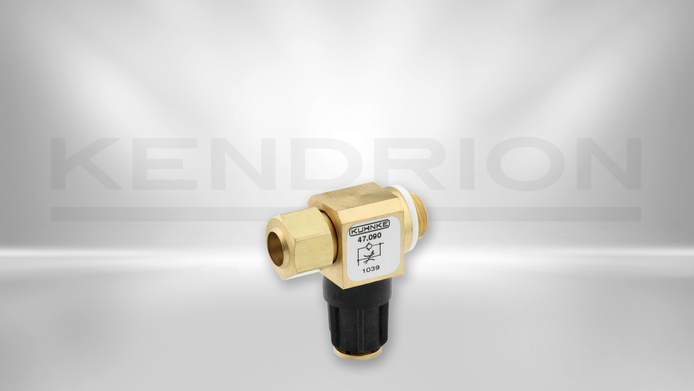

One-Way Flow Restrictor (with push-in fitting)
|
47.090 | 0 - 12 | 2 | Neutral gases | G1/8, tube 6 x 1 | Check valves and flow regulators | -10 ... +70 | - | - | to the product |
|
One-Way Flow Restrictor (with push-in fitting)
|
47.091 | 0 - 12 | 2 | Neutral gases | G1/8, tube 6 x 1 | Check valves and flow regulators | -10 ... +70 | - | - | to the product |
|

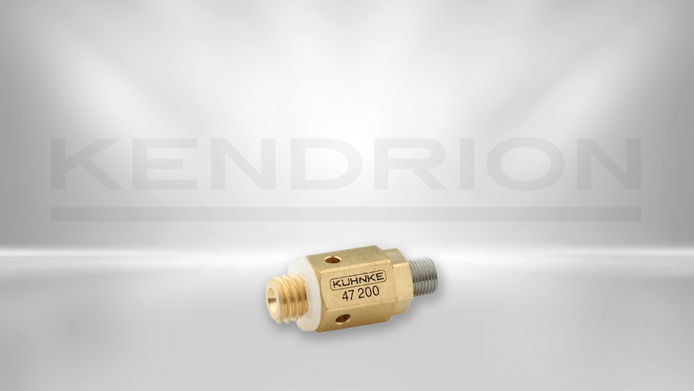

Outlet Restrictor
|
47.200 | 0 - 8 | 2 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: brass, seal: NBR | - | to the product |
|
Restrictor
|
47.220 | 0 - 8 | 2 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: brass, seal: NBR | - | to the product |
|
One-Way Flow Restrictor (with fixed orifice 0.07 mm)
|
47.251.07 | 0.5 - 8 | 0.07 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: brass, seal: NBR | - | to the product |
|
One-Way Flow Restrictor (with fixed orifice 0.10 mm)
|
47.251.10 | 0.5 - 8 | 0.10 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: brass, seal: NBR | - | to the product |
|
One-Way Flow Restrictor (with fixed orifice 0.16 mm)
|
47.251.16 | 0.5 - 8 | 0.16 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: brass, seal: NBR | - | to the product |
|
One-Way Flow Restrictor (with fixed orifice 0.20 mm)
|
47.251.20 | 0.5 - 8 | 0.20 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: brass, seal: NBR | - | to the product |
|
|

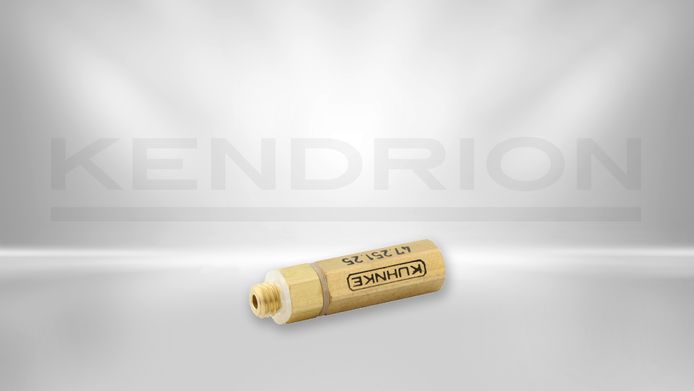

One-Way Flow Restrictor (with fixed orifice 0.25 mm)
|
47.251.25 | 0.5 - 8 | 0.25 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: brass, seal: NBR | - | to the product |
|
One-Way Flow Restrictor (with fixed orifice 0.40 mm)
|
47.251.40 | 0.5 - 8 | 0.40 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: brass, seal: NBR | - | to the product |
|
|
One-Way Flow Restrictor (with fixed orifice 0.60 mm)
|
47.251.60 | 0.5 - 8 | 0.60 | Filtered (5 µm), lubricated or non lubricated air | M5 | Check valves and flow regulators | -10 ... +70 | Housing: brass, seal: NBR | - | to the product |
