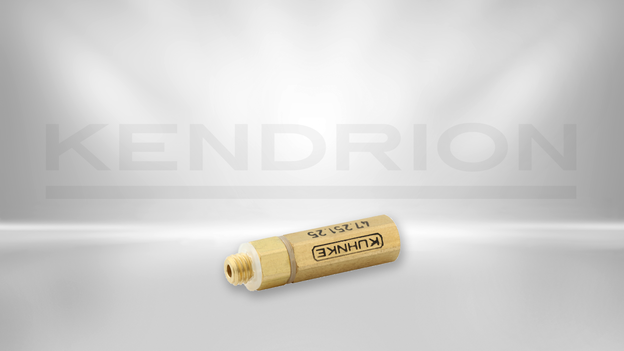

One-Way Flow Restrictor (with fixed orifice 0.20 mm)
47.251.20
Kendrion Automation has developed a high-quality range of non-return valves for applications requiring non-return and check functions. The one-way restrictor with fixed orifice is used where a reduction to low and constant flow values is required. There are different standard orifices available.
Technical details
| Description | Value |
|---|---|
| Pressure range | 0.5 - 8 bar |
| Nominal orifice | 0.20 mm |
| Medium | Filtered (5 µm), lubricated or non lubricated air |
| Type of pneumatic connection | M5 |
| Valve type | Check valves and flow regulators |
| Ambient temperature | -10 ... +70 °C |
| Materials | Housing: brass, seal: NBR |
