Electromagnetic solutions for safe and efficient AGV applications

Due to their resource efficiency, driverless transport systems (AGV) are an integral part of future-oriented intralogistics and various other applications. Kendrion offers a range of electromagnetic components for the optimization of your AGV systems. With decades of technological know-how in magnet technology, Kendrion specializes in customized actuators and holding magnets that increase the safety and efficiency of automated systems.


Kendrion offers proven solutions for safe stopping, automatic loading and unloading as well as load securing, especially for AGV, service robots or automated tractors. Our solenoids & actuators convince with their compact, lightweight design and low power consumption thanks to their bistable construction.

Our heros for AGV: Handling, holding, gripping and more!

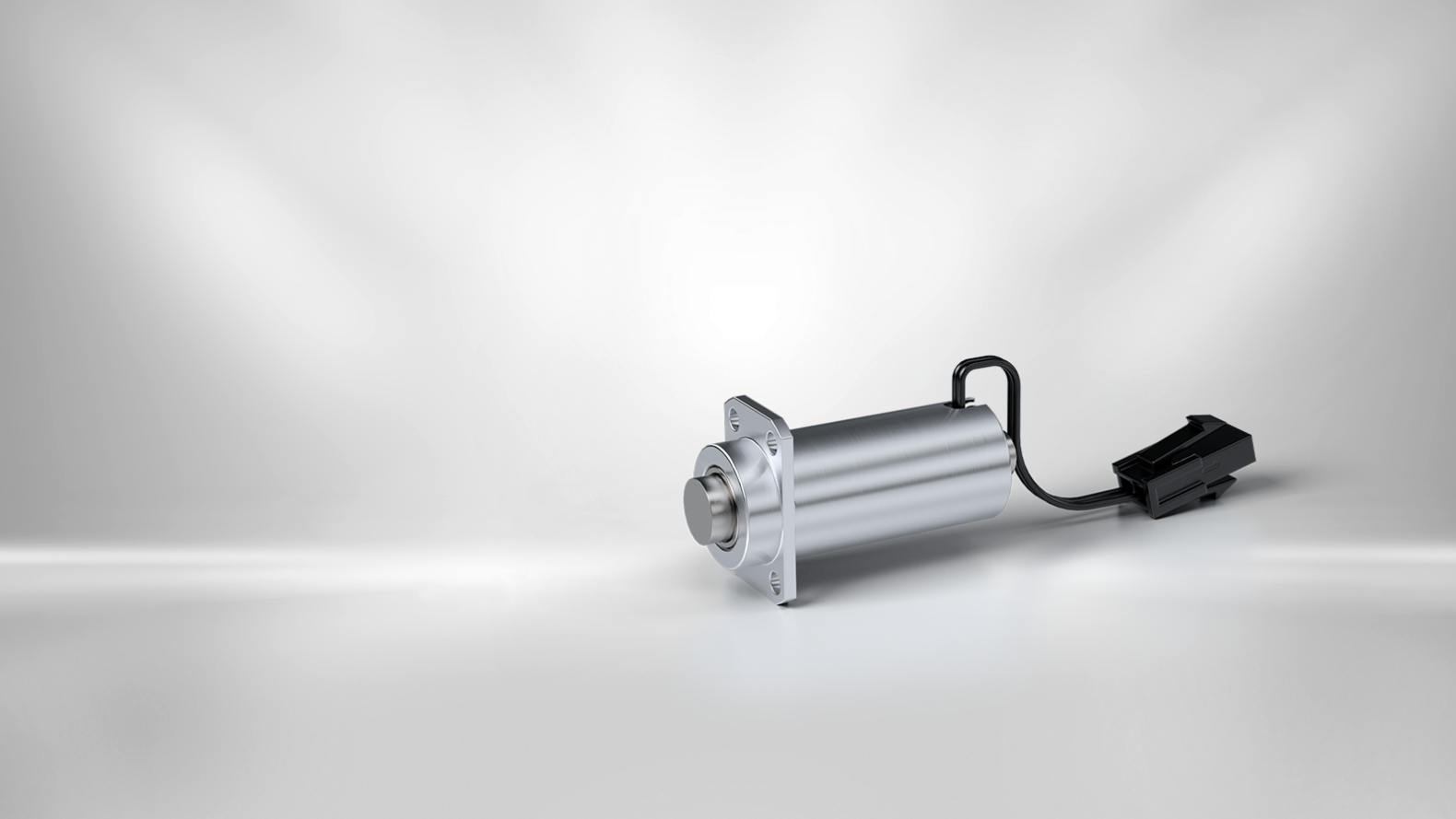

Safe stopping of the AGV in case of power outage

with the Emergency Solenoid Arrestor

Our Kendrion emergency solenoid arrestor can bring the AGV to an immediate stop in the event of a power loss, caused for example by a short circuit or battery failure, by mechanically blocking the wheels.
This quick blocking by a locking pin increases the safety standard of the AGV. Which comes into play, for example, on a ramp with an incline. Unbraked, the AGV could roll down the ramp and endanger the ongoing operating processes. The emergency solenoid arrestor from Kendrion can be individually adapted to the exact needs of your application.

Benefits at a glance

  • compact design

  • high safety due to currentless braking

  • low energy consumption due to overexcitation

  • high lateral force carrying capacity



Learn more about our emergency solenoid arrestor

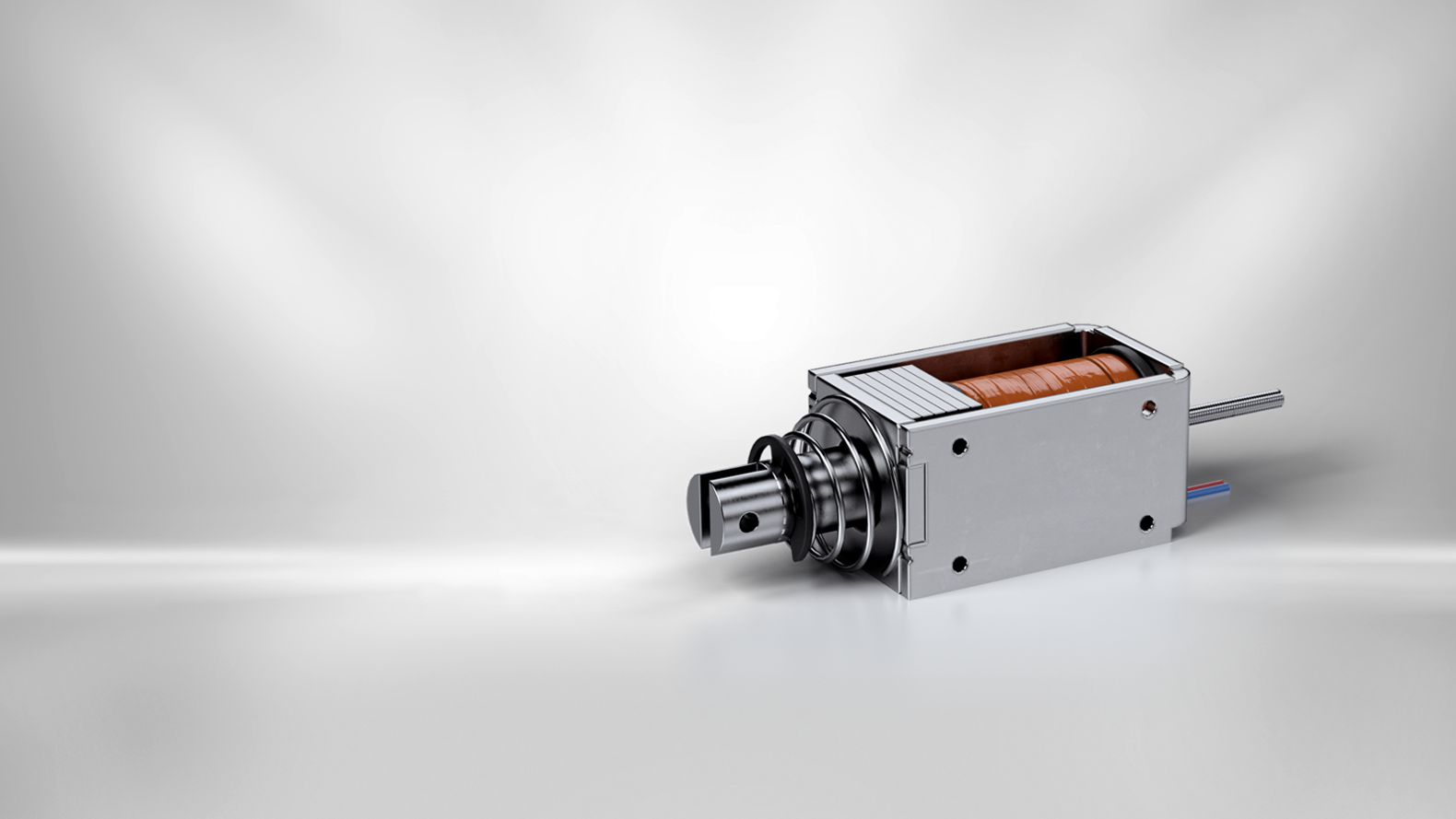

Securing the AGV flap in locking position

with the bistable solenoid BI034

The BI034 bistable solenoid is used in small AGV systems, for example, to hold in position flaps that are installed on an AGV and lifted at an incline for package delivery. The BI034 locks the position in a very short time and unlocks it again just as quickly after the task has been successfully completed. The BI034 impresses with its precision and durability and has already proven itself in AGV applications.

Benefits at a glance

  • compact design

  • low power consumption

  • high forces

  • short switching times



 Learn more about our bistable solenoids

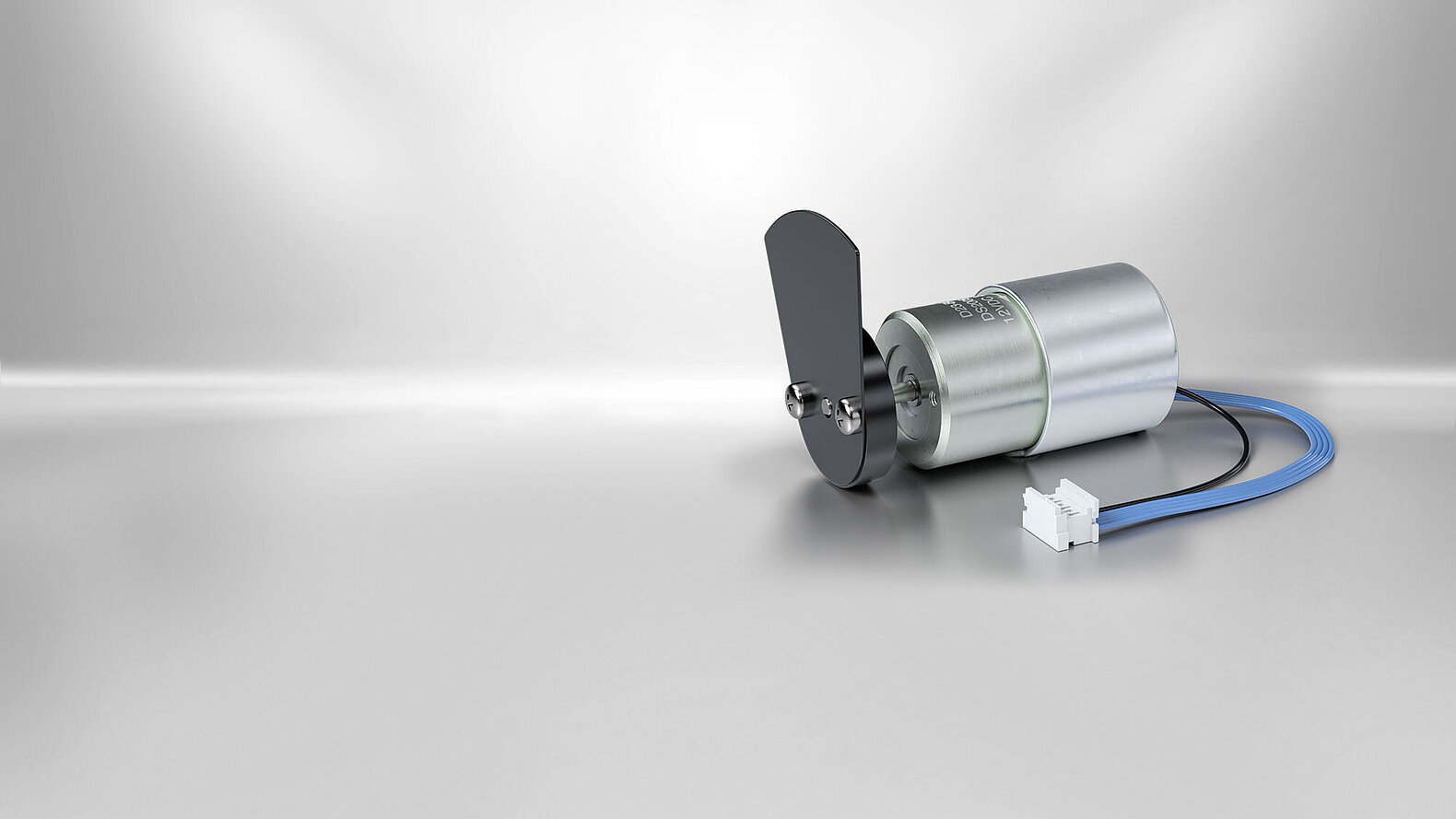

Blocking the laser light within milliseconds

with the laser shutter with blade

The shutter D23 laser, which is designed for continuous operation, blocks the laser beam with its optical paddle and a switching time of approx. 30 ms during operation and in pauses to protect the laser.

Based on our rotary solenoids D2, Kendrion offers a wide range of highly reliable optical shutters that are designed to block light and laser beams for safety purpose. With at least 10 million switching cycles, it is designed for reliable continuous operation. In addition, the integrated photocells enable us to detect the switching position. The bouncing effect is optimized by using an integrated damping mechanism.

Benefits at a glance

  • High lifetime
  • Fast closing time
  • Photocell end position detection
  • Closing of the aperture in case of power failure possible

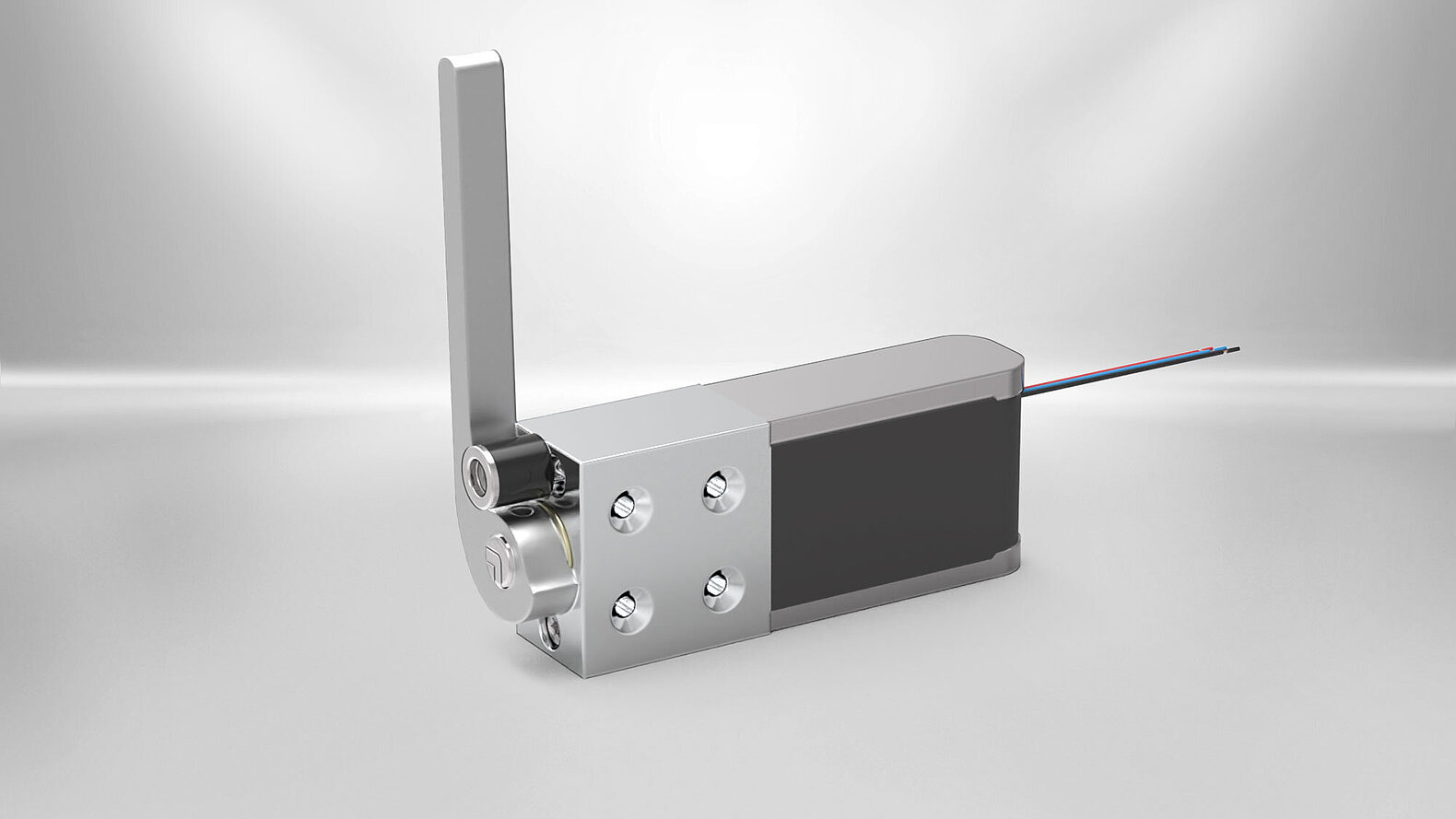

Securing loads on AGVs

with our shuttle solenoids BSM043

The BSM043 shuttle solenoids are the perfect solution for securing loads on AGVs. With a 90° swivel movement, the rotating magnetic aluminum finger secures the load and releases after transport for removal. Thanks to its bistable design, the BSM043 is very energy-efficient and can withstand high lateral forces.

Advantages at a glance:

  • low power consumption (max. 12W)
  • The new design is light and compact
  • High lateral force (up to 500N)
  • End position detection (optional) by Hall sensor



Learn more about our shuttle solenoid

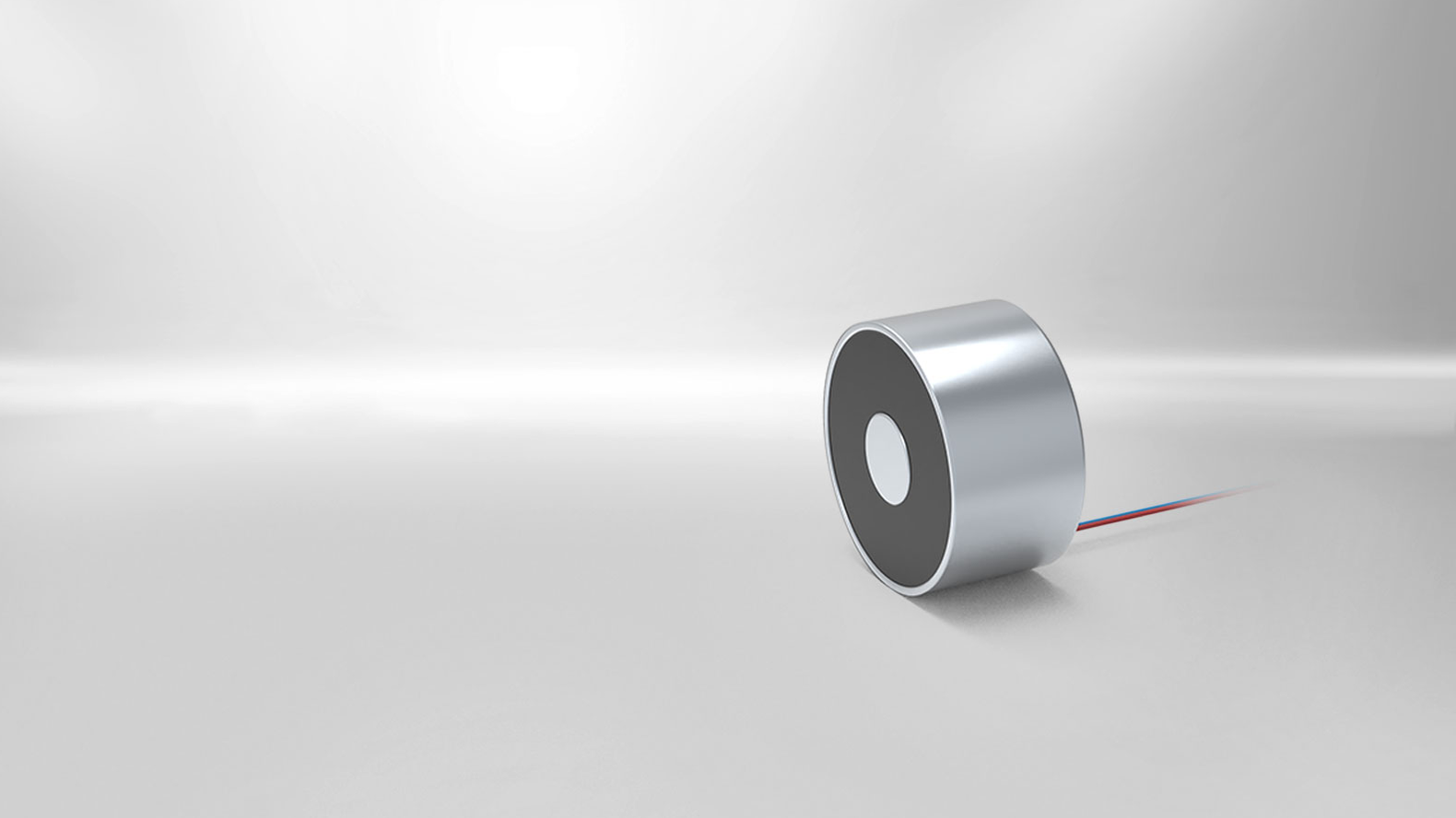

Permanent electro holding magnets from Kendrion include all permanent electromagnetic holding systems in round and rectangular design.

Magnetic gripping of metallic loads

with the permanent holding magnets GTN

The bistable holding magnets GTN025 and GTN050 are suitable as handling magnets on AGVs for gripping metal loads. The low power consumption and the currentless holding of the load combined with the small size make the magnet grippers superior components on driverless transport vehicles.

Benefits at a glance

  • Compact design

  • Holding the load without power consumption

  • Power needed only for load releasing



Learn more about our Permanent Holding Magnets

Downloads

Brochures and Flyers
Application Report | Emergency solenoid arrestor for AGVs
pdf - 301 KB
Datasheets
Datasheet | Emergency solenoid arrestor
pdf - 155 KB
Brochures and Flyers
Application Report | Bistable Solenoid BI34 for AGV flap control
pdf - 313 KB
Datasheets
Datasheet | BI34
pdf - 200 KB
Brochures and Flyers
Application Report | Lasershutter for protecting AGV laser
pdf - 425 KB
Datasheets
Datasheet | Advanced optical shutter
pdf - 937 KB

Our AGV solutions in action

Precise actuator technology on AGV systems
The bistable solenoid BI034 locks the flap position and unlocks it precisely with an end force of 45N just as quickly after the task has been successfully completed.
Securing long life operation of laser in AGV
The shutter D23 laser, which is designed for continuous operation, blocks the laser beam with its optical paddle and a switching time of approx. 30 ms during operation and in pauses to protect the laser.
Watch how our Emergency Solenoid Arrestor works
The Kendrion emergency solenoid arrestor stops the AGV immediately in the event of a power loss, caused for example by a short circuit or battery failure, by mechanically blocking the wheels.
