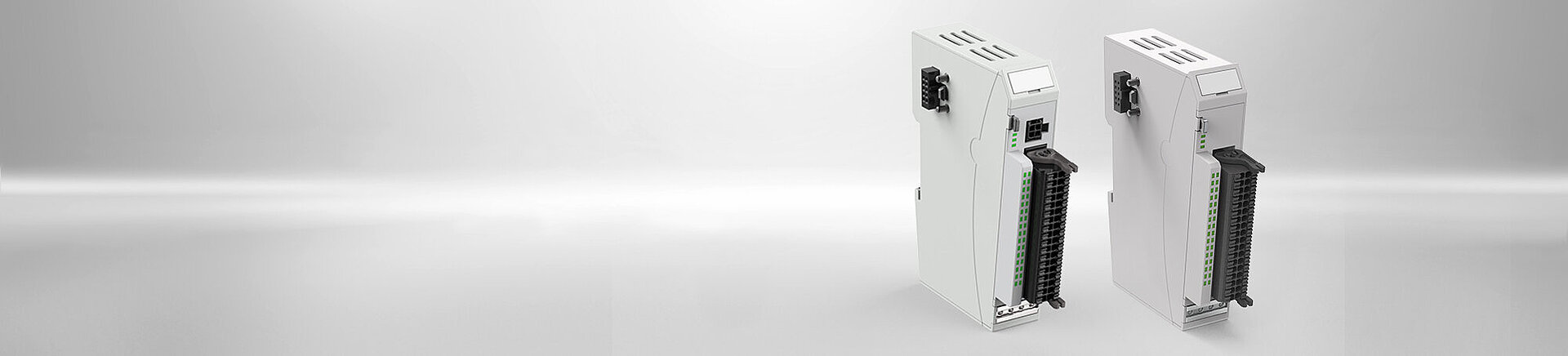

With the FIO Drive Control and FIO Stepper Control modules, Kendrion offers compact drive controllers for small and medium power range. The drive controllers can be easily integrated into the modular FIO systems - either as a decentralized I/O system with an EtherCAT bus coupler or as a stand-alone drive controller with a CODESYS PLC FIO Controller. The FIO Drive and Motion Modules offer efficient and precise motion control in your machine. Depending on the application and type of motor, we provide the right motion solution.

The compact drive controller FIO Drive Control Module can be used universally for the operation of stepper motors and brushless DC motors (BLDC motors) with up to 15 A peak current.

Especially when using stepper motors, magnetic field-oriented vector control with sinusoidal commutation ensures high dynamics, high efficiency, very smooth running, and low running noise. In this servo mode, step errors are corrected during travel, and load angle errors are compensated within a full step. By constantly monitoring the motor current, the controller only supplies as much current as necessary, thus saving energy.

The cost-optimized 3-axis stepper module is ideal for simple stepper motor applications - such as format adjustments or flap control. Here, 3 axes can be optimally positioned in the smallest installation space.

Motion control - now even easier with our FIO I/O modules

Thanks to the PLC Open modules, commissioning is a simple matter. You can have the system up and running in just 5 minutes, saving you time and resources. The intuitive operation enables quick integration into your application.

Discover our Motion Controller at a Glance

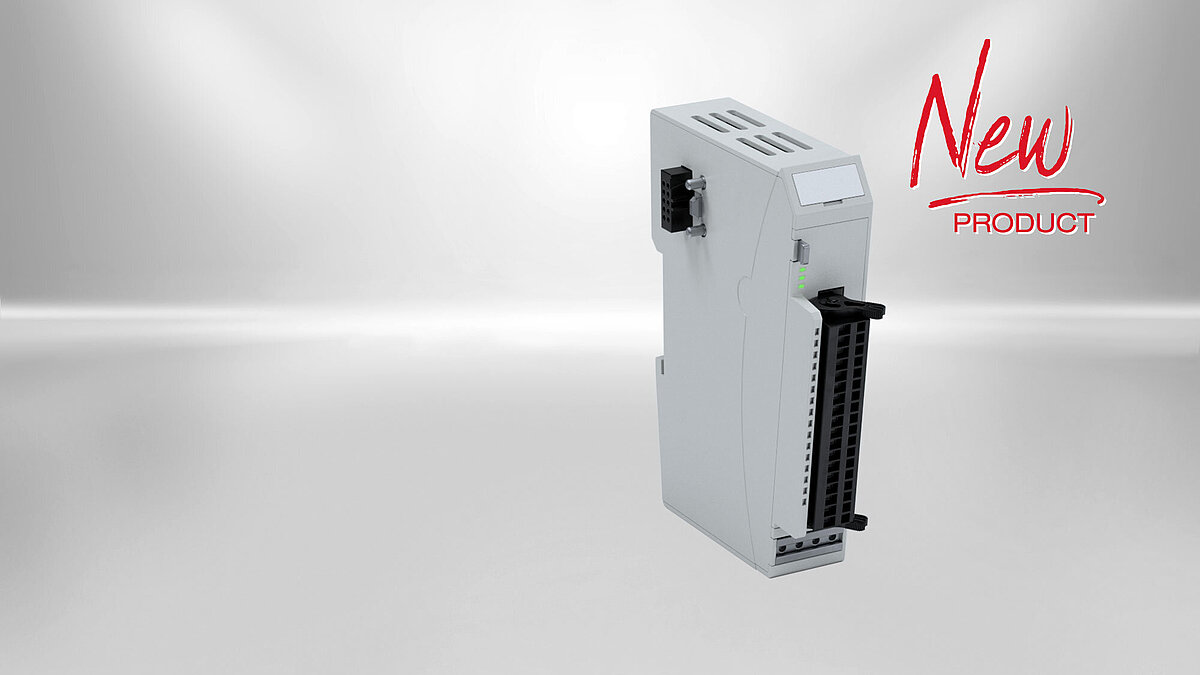

The new Kuhnke FIO stepper control module is ideal for controlling applications with small stepper motors (1.8 Aeff) and offers three independent axis interfaces. Two outputs for motor phases A and B, a brake output, an input for reference switches, 2 end position inputs and the motor supply in the range from 12 to 48 V DC are available for each motor.

The motion module also offers the configuration of three operating modes according to CAN over EtherCAT (CoE)/DS402 (positioning mode (absolute/relative) PP; speed mode PV; reference mode HM). The stepper control module offers the option of controlling x-y-z portals with just one module and is therefore the price-optimized alternative to the function-optimized FIO drive control module.

Like all our I/O systems, the FIO Stepper Control can be expanded with Kuhnke FIO modules. Thanks to its compact design, it is suitable for quick installation via top-hat rail mounting with a central front connector.

Have we aroused your interest? Find out more about the product here and send us an enquiry directly!

Go to the FIO Stepper Control in the ProductFinder

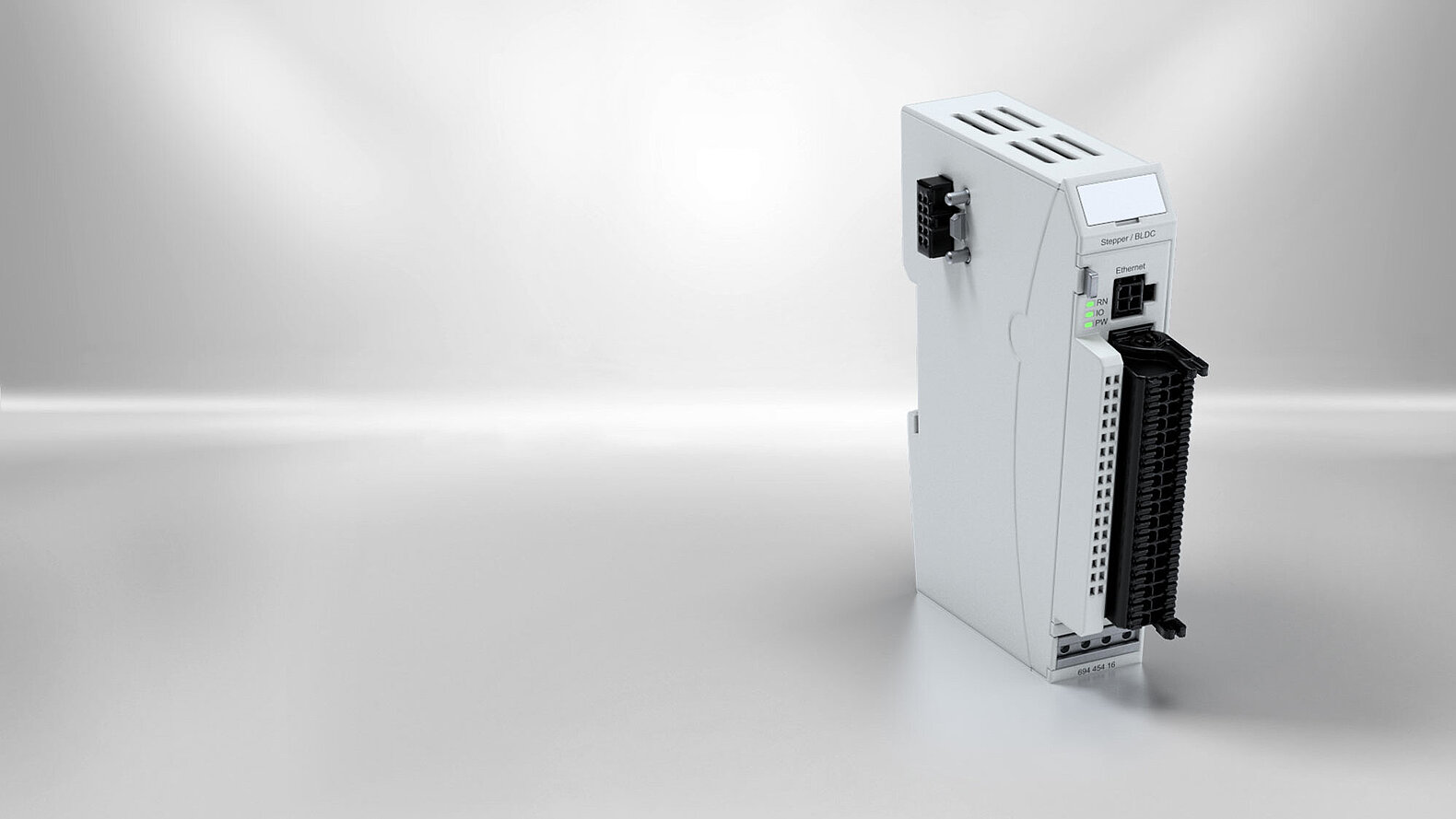

The Kuhnke FIO Drive Control Module impresses when controlling 2-phase stepper motors and brushless DC motors thanks to its high functionality and compact design. It has integrated outputs for the motor and brake as well as digital inputs for the incremental encoder, Hall encoder and 5 DI.

For optimum control, the module offers interpolation (cyclic synchronous position mode), positioning mode and torque control in addition to reference runs in accordance with DSP402.

The modular drive controller also offers the following advantages:

high dynamics
high efficiency
high energy efficiency
UL approval for the USA and Canada (cULus)

Are you interested in more details about the FIO Drive Control?

To the FIO Drive Control in the ProductFinder

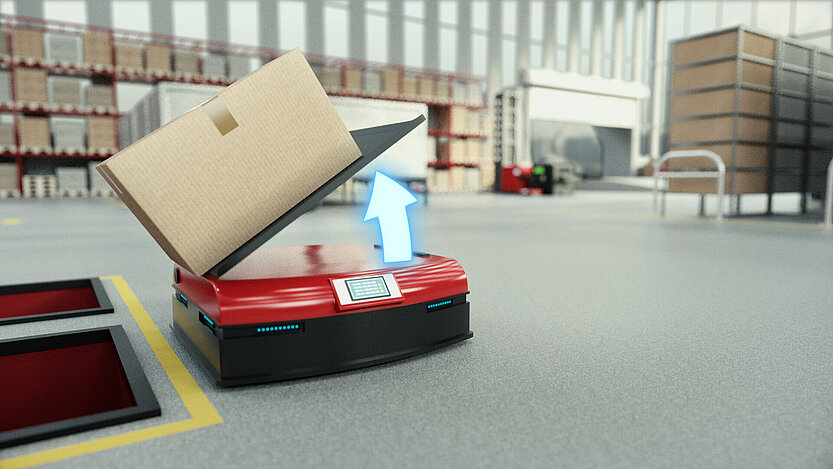

The new FIO Stepper Control module from Kendrion is the ideal choice for controlling the auxiliary drives of AGVs. By independently controlling 3 stepper motors per stepper control, various functions such as actuating or lifting turntables, lifts, flaps, rollers and belts can be controlled. The I/O module has three additional inputs per drive, which can be used either as limit positions or reference switches. Alternatively, the inputs can be used for independent functions such as manual operation of the drive unit.

Kendrion offers drive controllers for small, medium and large automated guided vehicles. The highly maneuverable AGVs are optimally controlled with the FIO Drive Control from Kendrion. For perfect synchronization, each wheel is addressed individually with a drive controller.

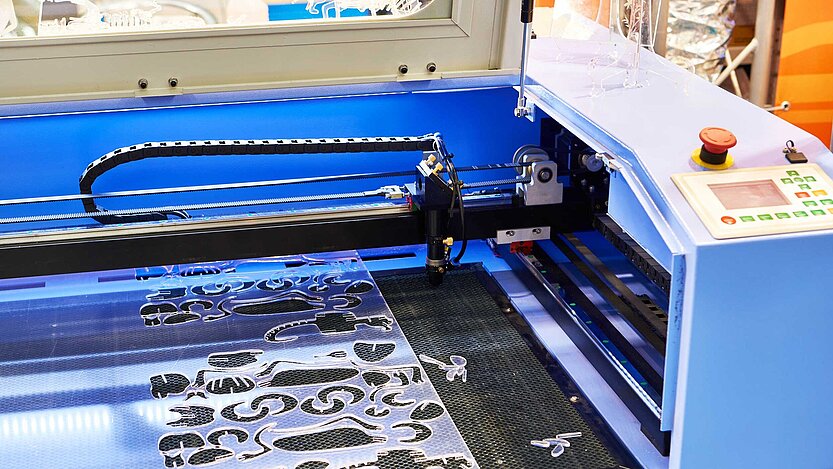

Stepper motors with a nominal current of 4A are used in a three-axis gantry to position the marking laser quickly and accurately. The drive controller programmed in CODESYS receives the position from an IPC, which calculates the position data according to specifications. The positions are sent to the FIO drive modules in real time via EtherCAT and the stepper motors are controlled synchronously to the specified positions. The exact position is recorded via a separate position encoder, which is also connected to the module.

All components are optimally matched to each other and combined into a complete solution with the highest positioning accuracy and maximum performance in the smallest possible space.

The solution for stepper motors: FIO Stepper Control

For stepper motors with high torque
Compact design
CODESYS SoftMotion library
Standard-compliant control (DS402)
EtherCAT

The solution for BLDC and stepper motors: FIO Drive Control

Servo controller (BLDC, stepper)
Closed loop operation for stepper motors
Simple configuration, fast signal testing
CODESYS SoftMotion library
EtherCAT with synchronization (distributed clocks)
Compact and modular bayable
