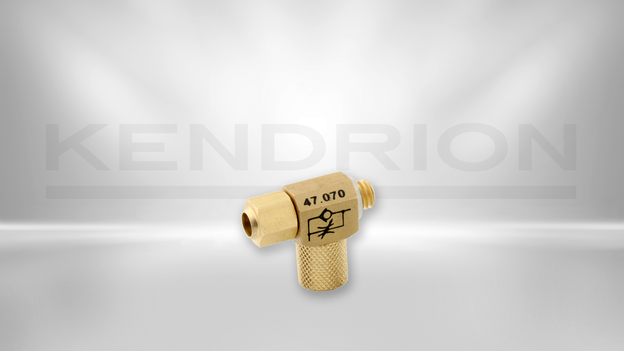

One-Way Flow Restrictor (incl. nut)
47.071
![](/fileadmin/_processed_/f/b/csm_kendrion-one-way-flow-restrictor-47071_ec52e80a71.png)
Kendrion Automation has developed a high-quality range of non-return valves for applications requiring non-return and check functions. These one-way restrictors can be screwed directly into the ports of miniature valves or cylinders. They are designed as inlet or outlet restrictors and do have either tube nipple connection including nut or push-in fittings.
Technical details
Description | Value |
---|---|
Pressure range | 0 - 12 bar |
Nominal orifice | 2 mm |
Medium | Neutral gases |
Type of pneumatic connection | M5, tube 5 x 1 |
Valve type | Check valves and flow regulators |
Ambient temperature | -10 ... +70 °C |
