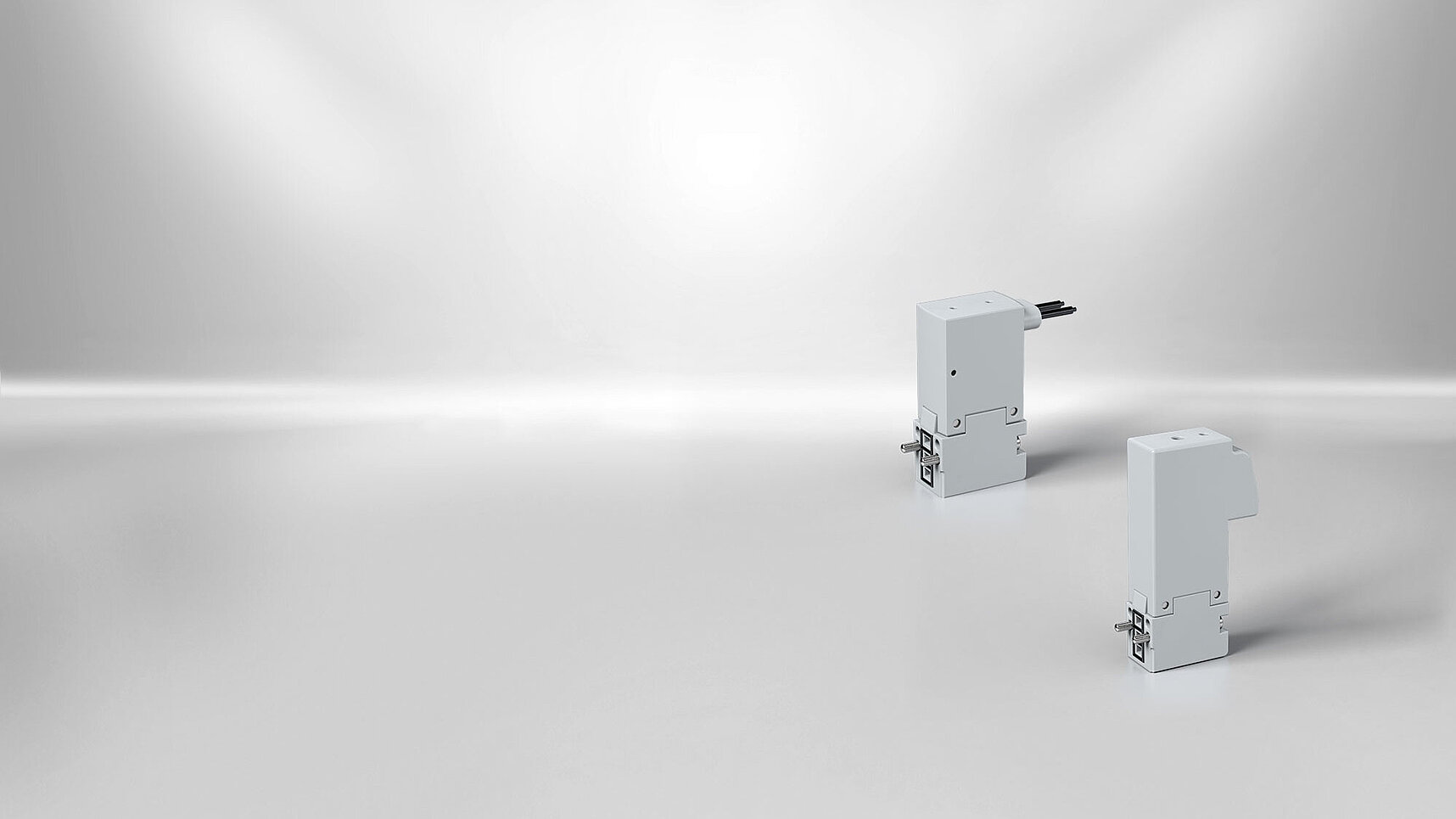

Direct Operated Solenoid Valves
Versatile, customizable and expandable
KENDRION direct operated solenoid valves for pneumatic and fluid technology are available in six different standard versions. Technical properties like function or flow rate can be adapted to customer-specific requirements.
These solenoid valves do come in 10 mm, 15 mm, 16 mm or 22 mm width. All KENDRION direct operated solenoid valves convince by their high flow rates at low power consumption and thereby fit even into mobile applications. They are available with pin, wire or plug for electrical connection. Customer-specific plugs can be delivered on request.
Standard micro solenoid valves series 63.1 and 63.0 as well as series 68 and 98 have flange connection and optionally subplates. KENDRION standard solenoid valves series 64 and series 65 have flange, thread or screw-in base connection.
Thanks to the individual adaptability, the fluid isolation solenoid valve series 97 offers a large number of applications and can also be used with aggressive media such as ultrapure water or printing ink.
Alternative sealing and housing materials, adaptions of orifices or nominal voltages and low-noise versions for many standard valves can be realised on request. Even an adaption to specific media e.g. an oxygen compliant setup and production can be ordered upon request.
With the bistable solenoid valve 63.0 BI, Kendrion offers an energy-efficient current pulse valve with a width of 10 mm that is ideal for applications in mobile systems. The valves are switched by a short current pulse and then hold their respective position de-energized. This makes the valves extremely energy-efficient and prevents heat build-up in the valve.
Discover our direct-operated solenoid valves in the ProductFinder
General Technical Specifications
| Parameter | Value |
|---|---|
| Nominal voltage | Standard 24 V DC (12 V DC); others on request |
| Pressure range | 0 to 8 bar (0 to 10 bar); depending on orifice size |
| Nominal orifice | 0.5 to 2.4 mm |
| Valve functions | 2/2-way and 3/2-way in NC/NO |
| Ambient temperature | From -10 °C to +50 °C |
| Power consumption | 1 to 4.5 W (5.5 VA) |
| Duty cycle | 100% |
| Electrical connections | Wire / plug / pins or flat plug receptacles |
| Operating medium | 5 micron filtered, lubricated or non-lubricated compressed air; also suitable for other media conforming to ISO-VG 10. |

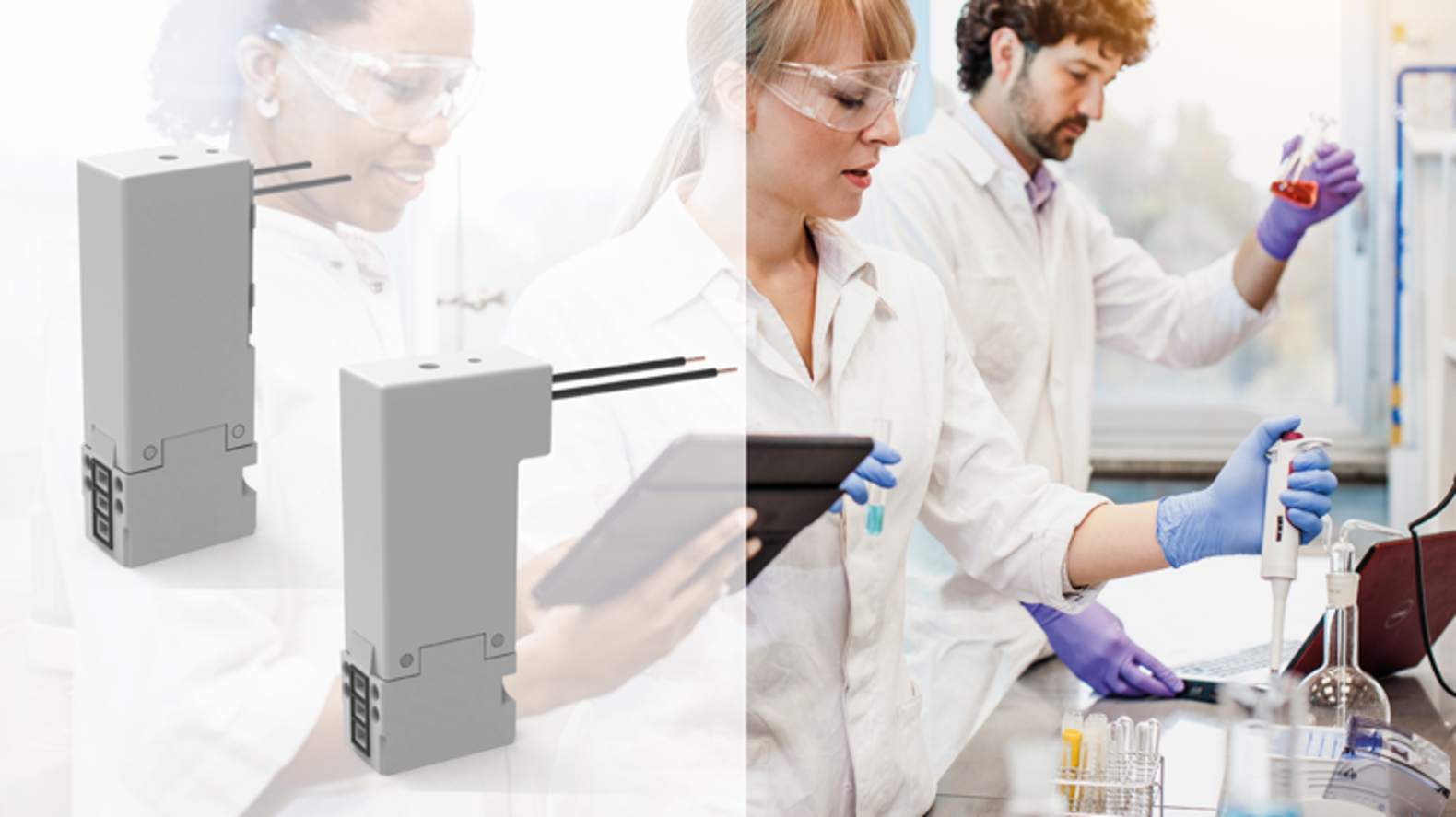

NEW: The bistable solenoid valve 63.0 BI
Energy-efficient and precise
The new bistable valve 63.0 BI controls liquids and gases quickly and precisely. Thanks to an integrated permanent magnet, the valve remains de-energised in the open or closed state without permanently energizing the coil. The switching position is changed in a few milliseconds by a short electrical pulse. This ensures a defined, self-retaining state of the valve even in the event of a power failure. The extremely low power consumption means that the coil does not heat up.
The bistable design and compact construction make the 63.0 BI an energy-efficient solution for mobile, battery-powered applications, for example in medical and analytical technology.
The valve is available as a 2/2 or 3/2-way version and can be customized.
Download data sheet for the 63.0 BI
