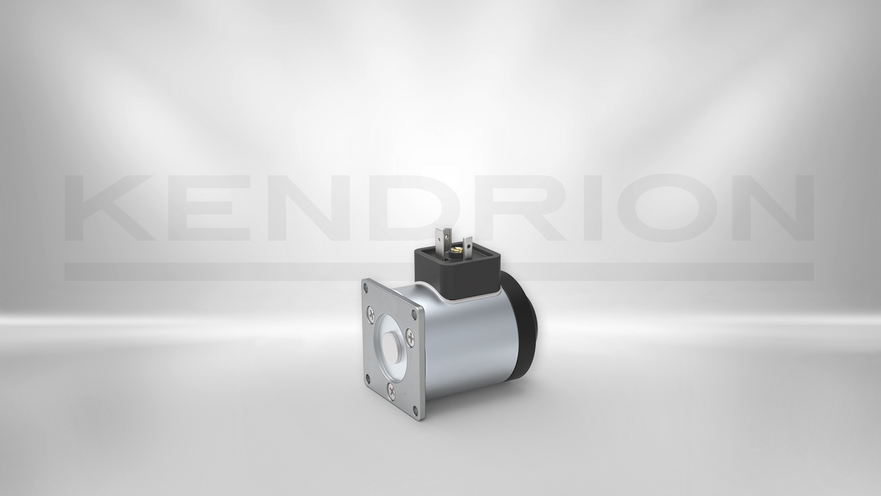

Valve actuator D51
41050023
Valve Actuators are linear solenoids with short stroke travels and high magnetic forces for precise switching of valves.
The valve actuator is based on the force effect exerted on ferromagnetic bodies in the magnetic field. The electrical energy is converted into mechanical kinetic energy. The armature is reset by spring, weight or magnetic forces.
The valve actuator is available in different versions and tested according to DIN VDE 0580/07.2000.
Technical details
| Description | Value |
|---|---|
| Nominal voltage | 24 V |
| Duty cycle | 100 % |
| Power consumption | 16 W |
| Stroke | 4 mm |
| Inital force | 40 N |
| End force | 75 N |
| Return spring | No |
| Dimensions (length, width, height) | 58,50,50 mm |
| Design | No |
| Protection class | IP 65 |
| Thermal class | B 130 |
| Connection | Plug |
| Solenoid weight | 600 g |
| Armature weight | 80 g |
| Special Features | Flange on the pressure side |
