Linear solenoids
Single stroke solenoids, bistable solenoids and heavy duty solenoids from Kendrion

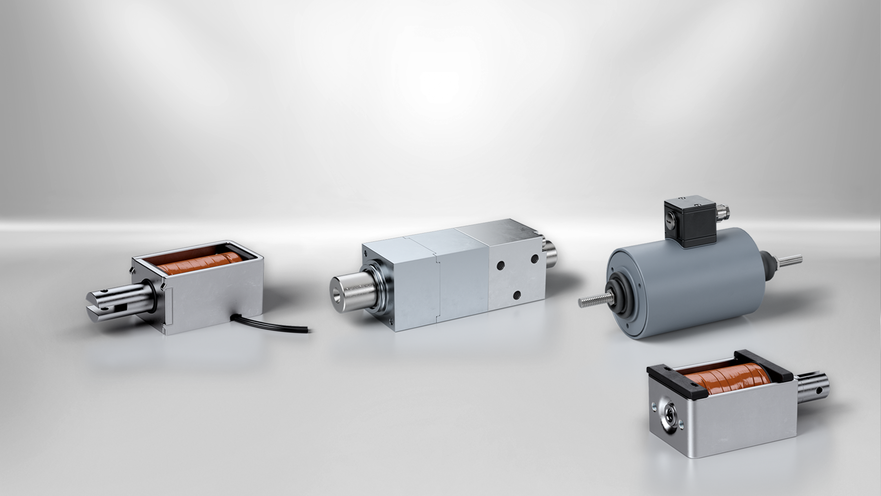

Kendrion linear solenoids develop high forces with compact dimensions and are universally applicable. Kendrion offers a wide range of standard solenoids, which are mainly used in mechanical engineering, medical technology, handling automation, power engineering and aviation. They are particularly durable, reliable and low-maintenance.
Linear solenoids in open-frame technology are available in various designs as push or pull solenoids or as combi type solenoids with integrated return spring. They are characterized by short switching times and a compact design.
Bistable linear solenoids are particularly suitable for use where low energy requirements and mains-independent applications are needed. Due to their small installation space, they can be used in a variety of applications. They can be integrated as interlocks in transportable devices, door interlocks and closing devices.
The high-performance linear solenoids of the LHP series are particularly powerful and robust. The closed, compact design makes the linear solenoids particularly resistant. High-performance linear solenoids are preferably used where short switching times and high efficiency are required. The maintenance-free armature bearings on both sides enable switching cycles in the 2-digit million range. They are available in cylindrical as well as in square design.
|
Title
ascending
descending
|
Type
ascending
descending
|
Duty cycle (%)
ascending
descending
|
Power consumption (W)
ascending
descending
|
Stroke (mm)
ascending
descending
|
Inital force (N)
ascending
descending
|
Nominal voltage (V)
ascending
descending
|
End force (N)
ascending
descending
|
Return spring
ascending
descending
|
Length
ascending
descending
|
Width
ascending
descending
|
Height
ascending
descending
|
Design
ascending
descending
|
Protection class
ascending
descending
|
Thermal class
ascending
descending
|
Connection
ascending
descending
|
Solenoid weight (g)
ascending
descending
|
Armature weight (g)
ascending
descending
|
Special Features
ascending
descending
|
Product Line
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Bistable Linear Solenoid BI 8
|
BI 8-F-24V DC 15 ED | 15 | 7.2 | 2.5 | 0.18 | 24 | 3.5 | Yes | 10 | 8 | 16 | Yes | IP 00 | E, 120 | 10 cm lead | 6 | 1.6 | - | Bistable Linear Solenoids | to the product |
|
Bistable Linear Solenoid BI 13
|
BI 13-F-24V DC 25 ED | 25 | 7 | 3 | 1 | 24 | 4 | Yes | 13 | 12 | 26 | Yes | IP 00 | E, 120 | 10 cm lead | 23 | 6 | - | Bistable Linear Solenoids | to the product |
|
Bistable Linear Solenoid BI 16
|
BI 16-F-24V DC 10 ED | 10 | 19 | 4 | 5 | 24 | 12 | Yes | 19 | 16 | 31 | Yes | IP 00 | F, 155 | 10 cm lead | 47 | 14 | - | Bistable Linear Solenoids | to the product |
|
Bistable Linear Solenoid BI 17
|
BI 17-F-24V DC 25 ED | 25 | 9.5 | 4 | 2, 8 | 24 | 9 | Yes | 17 | 17 | 30 | Yes | IP 00 | E, 120 | 10 cm lead | 46 | 12 | - | Bistable Linear Solenoids | to the product |
|
Bistable Linear Solenoid BI 34
|
BI 34-F-24V DC 25 ED | 25 | 38 | 8 | 12 | 24 | 45 | Yes | 30 | 26 | 49.5 | Yes | IP 00 | B, 130 | 10 cm lead | 220 | 58 | - | Bistable Linear Solenoids | to the product |
|
Linear Solenoid H08
|
H08F-24V DC 100 ED | 100 | 1.1 | 2 | 0.03 | 24 | 0.25 | No | 10 | 8 | 15.5 | No | IP 00 | E, 120 | 5 cm lead | 6 | 1, 6 | - | Single Stroke Linear Solenoids | to the product |
|
Linear Solenoid H09
|
H09F-24V DC 100 ED | 100 | 1.6 | 2 | 0.08 | 24 | 0.7 | Yes | 10.5 | 9.3 | 19.8 | No | IP 00 | E, 120 | 5 cm lead | 6, 3 | 2 | - | Single Stroke Linear Solenoids | to the product |
|
Linear Solenoid H12
|
H12F-24V DC 100 ED | 100 | 2.4 | 2 | 0.2 | 24 | 0.3 | Yes | 16 | 13.8 | 18 | No | IP 00 | B, 130 | 10 cm lead | 12 | 2 | - | Single Stroke Linear Solenoids | to the product |
|
Linear Solenoid H1606
|
H1606-F-24V DC 100 ED | 100 | 3.6 | 4 | 0.5 | 24 | 1 | No | 19 | 16 | 31 | No | IP 00 | F, 155 | 10 cm lead | 48 | 14 | - | Single Stroke Linear Solenoids | to the product |
|
Linear Solenoid H1686
|
H1686-R-F-24V DC 100 ED | 100 | 3.6 | 4 | 0.5 | 24 | 1 | Yes | 19 | 16 | 31 | No | IP 00 | F, 155 | 10 cm lead | 48 | 14 | - | Single Stroke Linear Solenoids | to the product |
|
Linear Solenoid H2206
|
H2206-F-24V DC 100 ED | 100 | 5.2 | 5 | 0.6 | 24 | 3.5 | No | 25 | 20 | 32 | No | IP 00 | B, 130 | 10 cm lead | 65 | 13 | - | Single Stroke Linear Solenoids | to the product |
|
Linear Solenoid H2246
|
H2246-F-24V DC 100 ED | 100 | 5.2 | 5 | 0.6 | 24 | 3.5 | No | 25 | 20 | 32 | No | IP 00 | B, 130 | 10 cm lead | 65 | 13 | - | Single Stroke Linear Solenoids | to the product |
|
Linear Solenoid H2286
|
H2286-R-F-24V DC 100 ED | 100 | 5.2 | 5 | 0.6 | 24 | 3.5 | Yes | 25 | 20 | 32 | No | IP 00 | B, 130 | 10 cm lead | 65 | 13 | - | Single Stroke Linear Solenoids | to the product |
|
Linear Solenoid H2406
|
H2406-F-24V DC 100 ED | 100 | 6 | 8 | 0.4 | 24 | 3.5 | No | 25 | 20.5 | 40 | No | IP 00 | B, 130 | 10 cm lead | 85 | 25 | - | Single Stroke Linear Solenoids | to the product |
|
|
Linear Solenoid H2446
|
H2446-F-24V DC 100 ED | 100 | 6 | 8 | 0.4 | - | 3.5 | No | 25 | 20.5 | 40 | No | IP 00 | B, 130 | 10 cm lead | 85 | 25 | - | Single Stroke Linear Solenoids | to the product |
|
|
Linear Solenoid H2486
|
H2486-R-F-24V DC 100 ED | 100 | 6 | 8 | 0.4 | 24 | 3.5 | Yes | 25 | 20.5 | 40 | No | IP 00 | B, 130 | 10 cm lead | 85 | 25 | - | Single Stroke Linear Solenoids | to the product |
|
Linear Solenoid H3206
|
H3206-F-24V DC 100 ED | 100 | 5.2 | 5 | 1 | 24 | 3.5 | No | 30 | 28 | 30.5 | No | IP 00 | B, 130 | 10 cm lead | 90 | 17 | - | Single Stroke Linear Solenoids | to the product |
|
Linear Solenoid H3246
|
H3246-F-24V DC 100 ED | 100 | 5.2 | 5 | 1 | 24 | 3.5 | No | 30 | 28 | 30.5 | No | IP 00 | B, 130 | 10 cm lead | 90 | 17 | - | Single Stroke Linear Solenoids | to the product |
|
Linear Solenoid H3286
|
H3286-R-F-24V DC 100 ED | 100 | 5.2 | 5 | 1 | 24 | 3.5 | Yes | 30 | 28 | 30.5 | No | IP 00 | B, 130 | 10 cm lead | 90 | 17 | - | Single Stroke Linear Solenoids | to the product |
|
Linear Solenoid H3406
|
H3406-F-24V DC 100 ED | 100 | 8 | 12 | 0.6 | 24 | 6 | No | 30 | 26 | 49.5 | No | IP 00 | B, 130 | 10 cm lead | 140 | 32 | - | Single Stroke Linear Solenoids | to the product |
|
Linear Solenoid H3446
|
H3446-F-24V DC 100 ED | 100 | 8 | 12 | 0.6 | 24 | 6 | No | 30 | 26 | 49.5 | No | IP 00 | B, 130 | 10 cm lead | 140 | 32 | - | Single Stroke Linear Solenoids | to the product |
