Permanent flat gripper HF
550 4043 8008
![](/fileadmin/_processed_/2/1/csm_5504043-Flat-Gripper-HF-Innengewinde_d7f9893990.png)

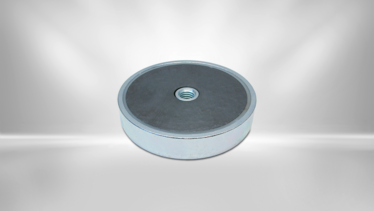

Flat gripper with a hard ferrite magnet in a steel pot. The housing increases the adhesive force of the permanent magnet. The maximum adhesive force is achieved when the entire surface is placed on a metallic surface. The flat gripper has a central internal thread.
Technical details
Description | Value |
---|---|
Design | with internal thread |
Material | hard ferrite |
Force | 550 N |
Diameter | 80 mm |
Height | 18 mm |
Weight | 472 g |
Thread | M8 |
Temperature | 200 °C |
Housing | galvanized |
