Flat Grippers
Permanent magnetic flat grippers for reliable holding and gripping

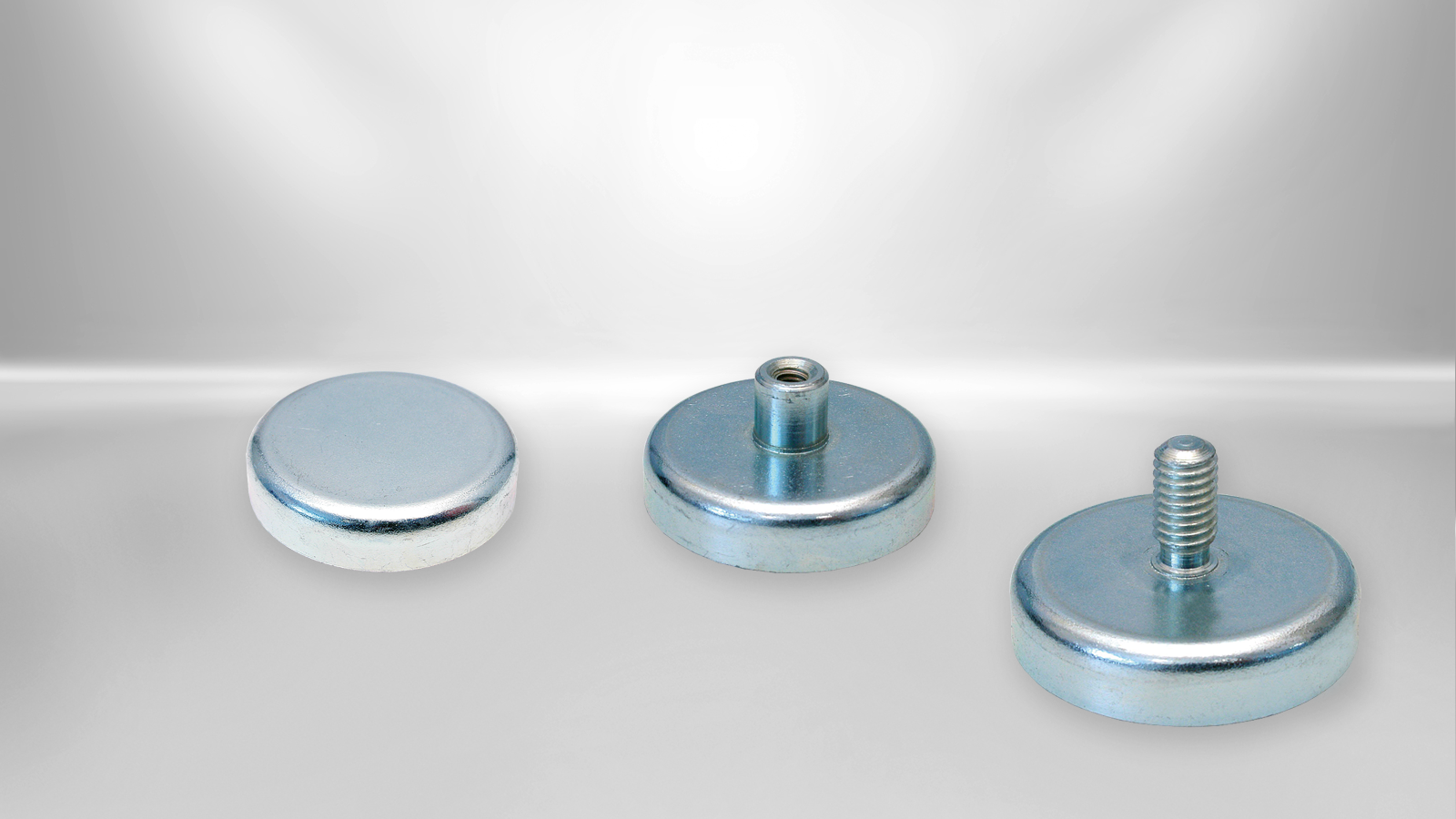

Permanent magnetic flat grippers from Kendrion are available in different sizes, materials and designs. They are made of hard ferrite, NdFeB or SmCo, with stainless steel or galvanized housing. Various designs such as threaded bushings, threaded pins and different bores are possible. Due to their design, the flat grippers have only one holding surface. Of all the other surfaces of the gripper magnet body assumes no magnetic force. The permanent magnets are non-aging and have high holding forces.
Special designs for different requirements can be realized on request.
Should malfunctions with long-term temperature, thermal shock stresses or chemical stresses be concerned, please contact us in advance.
Products
(147)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Design
ascending
descending
|
Material
ascending
descending
|
Force (N)
ascending
descending
|
Diameter (mm)
ascending
descending
|
Height (mm)
ascending
descending
|
Weight (g)
ascending
descending
|
Temperature (°C)
ascending
descending
|
Housing
ascending
descending
|
Total height (mm)
ascending
descending
|
Diameter threaded bush (mm)
ascending
descending
|
Thread
ascending
descending
|
Diameter bore (mm)
ascending
descending
|
Diameter counter bore (mm)
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

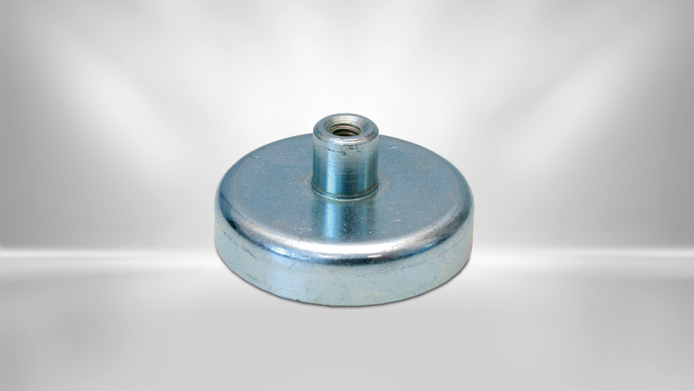

Permanent flat gripper HF
|
550 4035 01006 | with threaded bush | hard ferrite | 4 | 10 | 4.5 | 3 | 200 | galvanized | 11.5 | 6 | M3 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4035 01306 | with threaded bush | hard ferrite | 10 | 13 | 4.5 | 4 | 200 | galvanized | 11.5 | 6 | M3 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4035 01606 | with threaded bush | hard ferrite | 18 | 16 | 4.5 | 6 | 200 | galvanized | 11.5 | 6 | M3 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4035 02006 | with threaded bush | hard ferrite | 30 | 20 | 6 | 11 | 200 | galvanized | 13 | 6 | M3 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4035 02508 | with threaded bush | hard ferrite | 40 | 25 | 7 | 20 | 200 | galvanized | 15 | 8 | M4 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4035 03208 | with threaded bush | hard ferrite | 80 | 32 | 7 | 31 | 200 | galvanized | 15 | 8 | M4 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4035 03608 | with threaded bush | hard ferrite | 100 | 36 | 7.7 | 42 | 200 | galvanized | 16 | 8 | M4 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4035 04008 | with threaded bush | hard ferrite | 125 | 40 | 8 | 57 | 200 | galvanized | 16.5 | 8 | M4 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4035 04010 | with threaded bush | hard ferrite | 125 | 40 | 8 | 59 | 200 | galvanized | 18 | 10 | M5 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4035 04708 | with threaded bush | hard ferrite | 180 | 47 | 9 | 86 | 200 | galvanized | 17 | 8 | M4 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4035 04712 | with threaded bush | hard ferrite | 180 | 47 | 9 | 91 | 200 | galvanized | 21 | 12 | M6 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4035 05008 | with threaded bush | hard ferrite | 220 | 50 | 10 | 105 | 200 | galvanized | 18.5 | 8 | M4 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4035 05012 | with threaded bush | hard ferrite | 220 | 50 | 10 | 111 | 200 | galvanized | 22 | 12 | M6 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4035 05708 | with threaded bush | hard ferrite | 280 | 57 | 10.5 | 147 | 200 | galvanized | 18.5 | 8 | M4 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4035 05712 | with threaded bush | hard ferrite | 280 | 57 | 10.5 | 153 | 200 | galvanized | 22.5 | 12 | M6 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4035 06308 | with threaded bush | hard ferrite | 350 | 63 | 14 | 228 | 200 | galvanized | 22 | 8 | M4 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4035 06315 | with threaded bush | hard ferrite | 350 | 63 | 14 | 245 | 200 | galvanized | 30 | 15 | M8 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4035 08012 | with threaded bush | hard ferrite | 600 | 80 | 18 | 477 | 200 | galvanized | 28.5 | 12 | M6 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4035 08020 | with threaded bush | hard ferrite | 600 | 80 | 18 | 499 | 200 | galvanized | 34 | 20 | M10 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4035 10022 | with threaded bush | hard ferrite | 900 | 100 | 22 | 956 | 200 | galvanized | 43 | 22 | M12 | - | - | to the product |
|
|
Permanent flat gripper HF
|
550 4035 12525 | with threaded bush | hard ferrite | 1300 | 125 | 26 | 1720 | 200 | galvanized | 50 | 25 | M14 | - | - | to the product |
