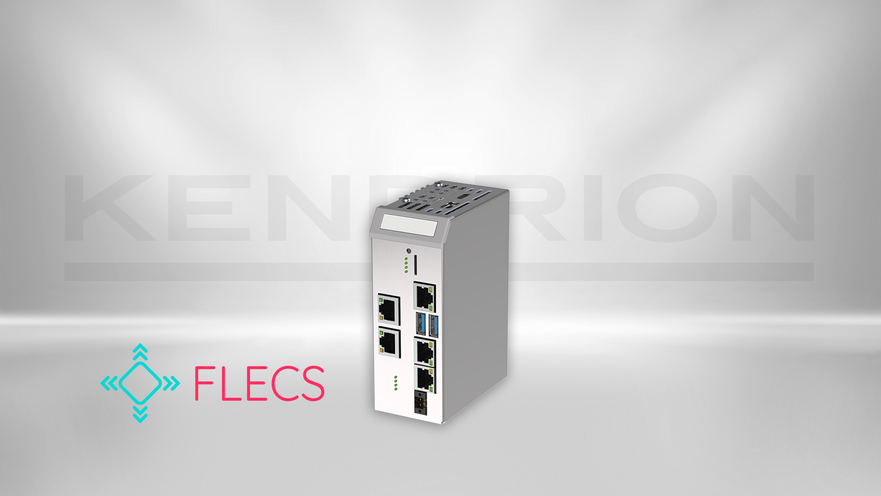

Econo 328 APP
640 001 28 100
The robust and industrial-grade Econo 328 is equipped with a Raspberry Pi Compute Module 4 and is passively cooled. It uses a 64-bit quad-core Cortex-A72 (ARM v8) SoC as a processor and offers flexible memory expansion options. The device is versatile and can be used as an industrial gateway, automation controller or micro edge computer. The device can be easily expanded with automation apps from the FLECS Marketplace.
The HDMI interface can be used to connect monitors for monitoring or operating the process. The communication options can be expanded using various optional expansion modules. The USB 3.0 interfaces enable the connection of removable storage media or external peripherals.
- Robust hardware for industrial environments with powerful Quad Core ARM-A72
- Use of extensions from the FLECS Marketplace and open source-based software
- Separate 1000 Mbit Ethernet interfaces
- Real-time capability for industrial and robotics applications
- Optional expansion modules (Ethernet, PROFINET, CAN + RS485...)
Technical details
| Description | Value |
|---|---|
| Configuration | IOT Controller |
| Function | Embedded PC |
| Model | Control cabinet modul |
| Product status | In preparation |
| Processor | Quad -core ARM Cortex A72 (1,5 GHz), Raspberry Pi 4 |
| Graphics Interfaces | HDMI interface, 3840 × 2160p @ 60 Hz (4K) |
| Operating system | Linux RT |
| Software | The device has a licence to install automation apps from the FLECS Marketplace Ready for extension with automation apps from the Flecs Marketplace |
| Main memory | 2GB DDR4L |
| Non-volatile memory | 128 kB |
| Data memory | µSD(HC)-Card Slot up to 32 GByte |
| Drive | eMMC Speicher 8 GByte |
| Interfaces | 2 x Ethernet (SW) 1 Gbit, 1 x Ethernet 1 Gbit, 2 x Ethernet (SW) 100 Mbit |
| Digital I/Os (integrated) | 2x USB3.0, 1x USB2.0 |
| Field bus interfaces | - |
| Housing material | Stainless steel, heat sink made of aluminum |
| Mounting | DIN-rail mounting |
| Dimensions (W x H x D) | 45 x 125 x 90 mm |
| IP-Protection Class | IP20 |
| Supply voltage | 9,0 …28,8 V DC, Powerfail functions, 1 s mini UPS |
