Door locks
Solenoid door locks with high locking forces
Kendrion solenoid door locks are based on many years of experience in the field of high-tech locking systems. They are characterized by very high locking forces and favor a fast and reliable unlocking.
Self-lockend and active-locked door locks from Kendrion are used for example in fittings or turnstiles, and in aviation in baggage flaps, galleys or oxygen supply systems. It is also used for locking centrifuges and disinfection devices in medical and analytical technology and in industrial equipment such as combi steamers, steam cookers, ovens, autoclaves or washing machines. The motorised door lock allows the control of multiple locking positions. In this way a lock design may include special safety positions for added protection of the operator additionally to all standard safety aspects.
The rotary door lock from Kendrion is very strong and secure. It is is especially designed for compression locking so applications in which moisture, temperatures, or gases are handled can be securely sealed and locked.
|
Title
ascending
descending
|
Type
ascending
descending
|
Usage of the locking
ascending
descending
|
Way of locking
ascending
descending
|
Nominal voltage (V)
ascending
descending
|
Duty cycle (%)
ascending
descending
|
Power consumption (W)
ascending
descending
|
Max. static holding force (N)
ascending
descending
|
Max. load force for electrical unlocking (N)
ascending
descending
|
Connection
ascending
descending
|
Snap-in function
ascending
descending
|
Emergency opener
ascending
descending
|
Operating temprature
ascending
descending
|
Dimensions
ascending
descending
|
Service life
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

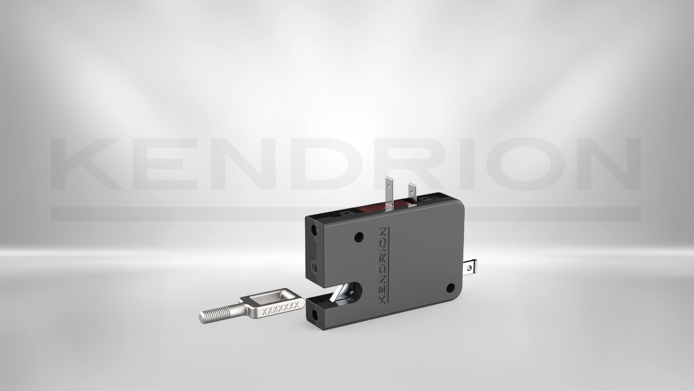

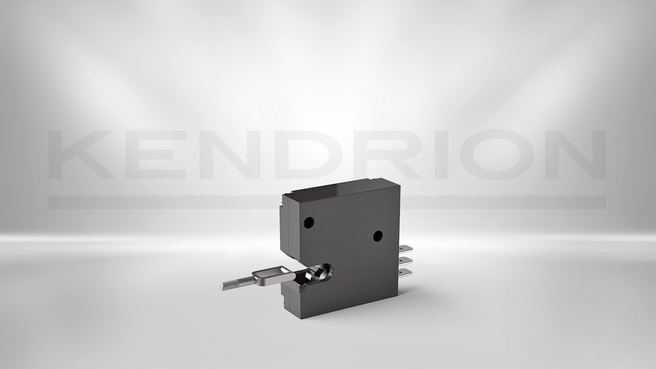

Compact Door Lock
|
Compact Lock | Snap in / linear | self-locked / monostable | 12 & 24 | - | 0 | 500 | - | - | - | Optional | - | - | 20.000 switching cycles | to the product |
|

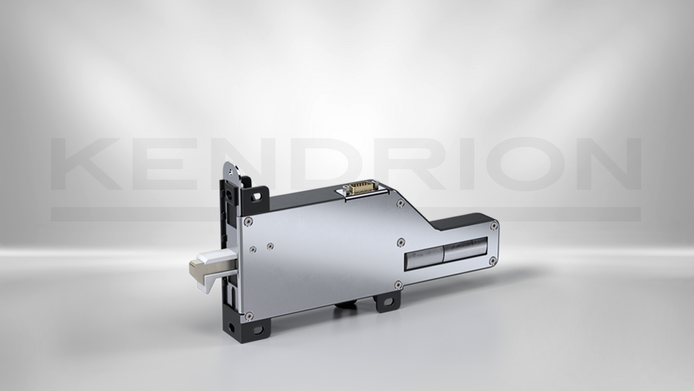

Motorized Door Lock HS7722
|
Motorized door lock HS7722 24 VDC | Automatic pull & push lock | Motorized locked | 24 | 10 | 19 | 400 | 400 | Male 15-pin D-sub-miniature connector | Yes | Yes | 0 - 80 °C | 117 x 227 x 30 mm | - | to the product |
|
Solenoid Door Lock, Self-Locked (SL)
|
Solenoid Lock SL-7010-F-24V DC 10%ED | snap in / linear | self-locked / monostable | 24 | 10 | 36 | 1600 | 400 | Lead 18 cm | Yes | Yes | 0 - 80 °C | 70 x 70 x 18 mm | - | to the product |
|

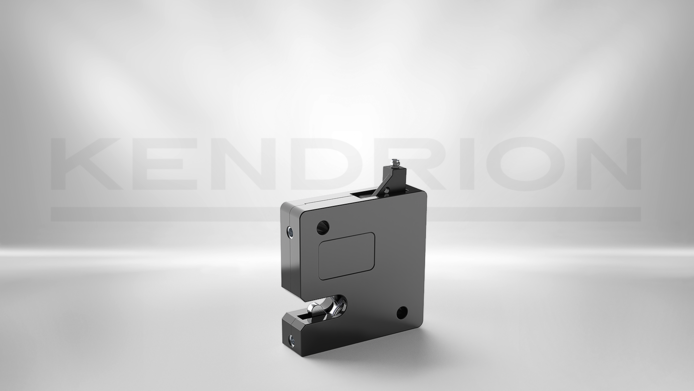

Solenoid Door Lock, Active-Locked (AL)
|
Solenoid Lock AL-7011-F-24V DC 10%ED | Snap in / linear | Active-locked / bistable | 24 | 10 | 36 | 1600 N | 400 | Lead 18 cm | Yes | Yes | 0 - 80 °C | 70 x 70 x 18 mm | - | to the product |
|

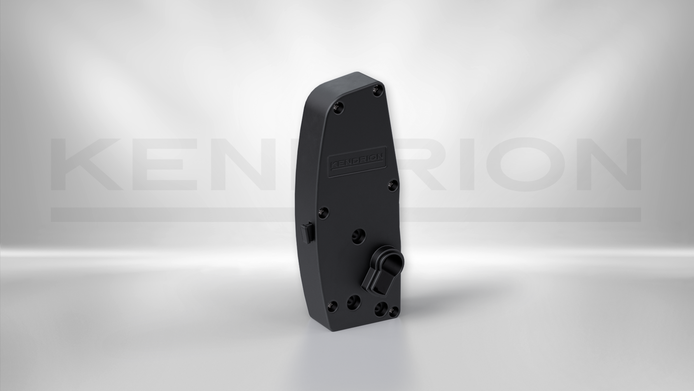

Rotary Door Lock
|
Solenoid Lock RL 24V DC | Rotating lock / cam lock | active-locked / bistable | 24 | 2 | 24 | 400 | 400 | TE Connectivity VAL-U-LOK 1-2296207-0 | No | Yes | 0 - 80 °C | 174 x 70 x 32 mm | - | to the product |
