Compact Door Lock
Compact Lock
play

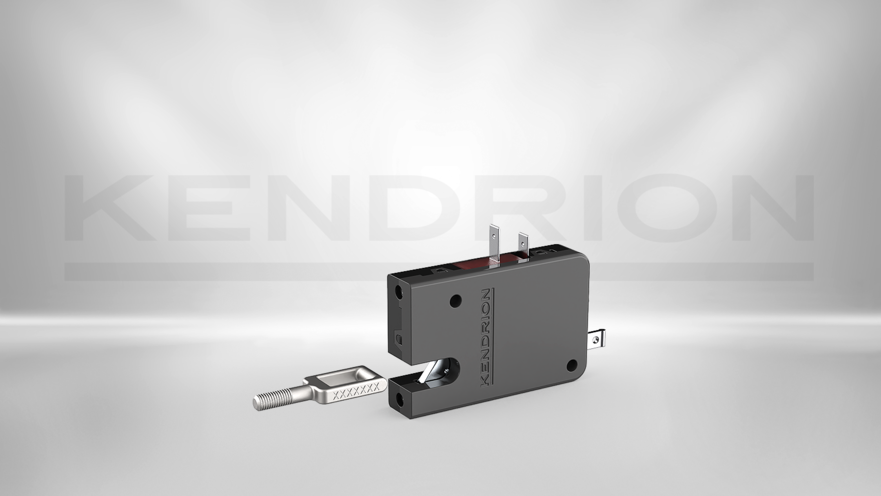

The new electromagnetic lock “Compact Lock” impresses with its compact design and shock resistance of up to 300 g in all axes. The solenoid lock is ready to install and keeps doors and flaps securely locked. It has a manual emergency opener. It is mounted using two mounting holes with a diameter of 6.6 mm.
Areas of application include
- vending machines
- lockers
- parcel stations
- and other applications where space is limited.
Want to learn more about the Compact Lock?
Technical details
| Description | Value |
|---|---|
| Usage of the locking | Snap in / linear |
| Way of locking | self-locked / monostable |
| Abmessungen | Length 85 mm, width 55 mm and depth 18 mm mm |
| Nominal voltage | 12 & 24 V |
| Power consumption | Max. 36 W |
| Max. static holding force | 500 N |
| Service life | 20.000 switching cycles |
| Emergency opener | Optional |
