Rod grippers
Compact rod grippers with high holding forces

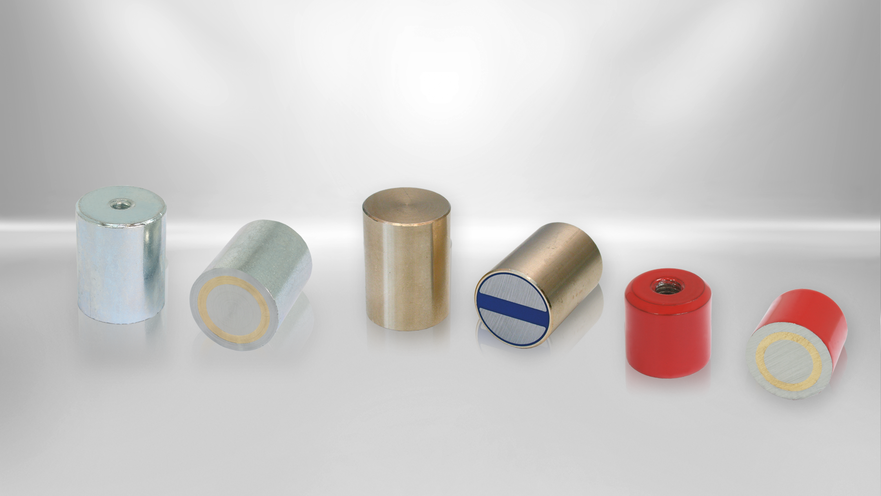

Kendrion offers permanent magnetic rod grippers in various sizes, materials and designs. They are made of AlNiCo, NdFeB and SmCo with housings of brass or steel. The rod grippers feature a high holding force with compact size and are used in many applications of different fields.
Special designs for different requirements can be realized on request.
Products
(91)
show results as grid
show results as list
|
Title
ascending
descending
|
Type
ascending
descending
|
Design
ascending
descending
|
Material
ascending
descending
|
Force (N)
ascending
descending
|
Height (mm)
ascending
descending
|
Weight (g)
ascending
descending
|
Temperature (°C)
ascending
descending
|
Thread
ascending
descending
|
Housing
ascending
descending
|
Shortened to (mm)
ascending
descending
|
Fitting Tolerance
ascending
descending
|
Measure "D" (mm)
ascending
descending
|
Diameter (mm)
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

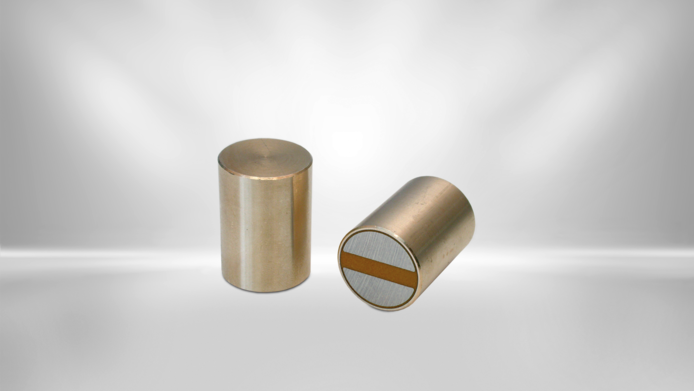

Rod gripper SmCo 06
|
550 4011 06 | without thread | SmCo | 8 | 20 | 4.5 | 200 | - | brass | 10 | h6 | 1.5 | - | to the product |
|
|
Rod gripper SmCo
|
550 4011 08 | without thread | SmCo | 22 | 20 | 8 | 200 | - | brass | 10 | h6 | 1.5 | - | to the product |
|
|
Rod gripper SmCo
|
550 4011 10 | without thread | SmCo | 40 | 20 | 12.5 | 200 | - | brass | 8 | h6 | 2 | - | to the product |
|
|
Rod gripper SmCo
|
550 4011 13 | without thread | SmCo | 60 | 20 | 20 | 200 | - | brass | 6 | h6 | 2.5 | - | to the product |
|
|
Rod gripper SmCo
|
550 4011 16 | without thread | SmCo | 125 | 20 | 32 | 200 | - | brass | 2 | h6 | 3 | - | to the product |
|
|
Rod gripper SmCo
|
550 4011 20 | without thread | SmCo | 250 | 25 | 60 | 200 | - | brass | 5 | h6 | 4 | - | to the product |
|
|
Rod gripper SmCo
|
550 4011 25 | without thread | SmCo | 400 | 35 | 135 | 200 | - | brass | 7 | h6 | 5 | - | to the product |
|
|
Rod gripper SmCo
|
550 4011 32 | without thread | SmCo | 600 | 40 | 250 | 200 | - | brass | 4 | h6 | 6 | - | to the product |
|
Rod gripper NdFeB
|
550 4010 06 | without thread | NdFeB | 10 | 20 | 4.5 | 80 | - | brass | 10 | h6 | 1.5 | - | to the product |
|
|
Rod gripper NdFeB
|
550 4010 08 | without thread | NdFeB | 24 | 20 | 8 | 80 | - | brass | 10 | h6 | 1.5 | - | to the product |
|
|
Rod gripper NdFeB
|
550 4010 10 | without thread | NdFeB | 45 | 20 | 12 | 80 | - | brass | 8 | h6 | 2 | - | to the product |
|
|
Rod gripper NdFeB
|
550 4010 13 | without thread | NdFeB | 70 | 20 | 20 | 80 | - | brass | 6 | h6 | 2.5 | - | to the product |
|
|
Rod gripper NdFeB
|
550 4010 16 | without thread | NdFeB | 150 | 20 | 30 | 80 | - | brass | 2 | h6 | 3 | - | to the product |
|
|
Rod gripper NdFeB
|
550 4010 20 | without thread | NdFeB | 280 | 25 | 59 | 80 | - | brass | 5 | h6 | 4 | - | to the product |
|
|
Rod gripper NdFeB
|
550 4010 25 | without thread | NdFeB | 450 | 35 | 132 | 80 | - | brass | 7 | h6 | 5 | - | to the product |
|
|
Rod gripper NdFeB
|
550 4010 32 | without thread | NdFeB | 720 | 40 | 246 | 80 | - | brass | 5 | h6 | 6 | - | to the product |
|
Rod gripper NdFeB
|
550 4022 06 | with internal thread | NdFeB | 10 | 20 | 4 | 80 | M3 x 5 | brass | - | h6 | 1.5 | - | to the product |
|
|
Rod gripper NdFeB
|
550 4022 08 | with internal thread | NdFeB | 24 | 20 | 7.5 | 80 | M3 x 5 | brass | - | h6 | 1.5 | - | to the product |
|
|
Rod gripper NdFeB
|
550 4022 10 | with internal thread | NdFeB | 45 | 20 | 11 | 80 | M4 x 7 | brass | - | h6 | 2 | - | to the product |
|
|
Rod gripper NdFeB
|
550 4022 13 | with internal thread | NdFeB | 70 | 20 | 19.5 | 80 | M4 x 7 | brass | - | h6 | 2.5 | - | to the product |
|
|
Rod gripper NdFeB
|
550 4022 16 | with internal thread | NdFeB | 150 | 20 | 38 | 80 | M4 x 8 | brass | - | h6 | 3 | - | to the product |
