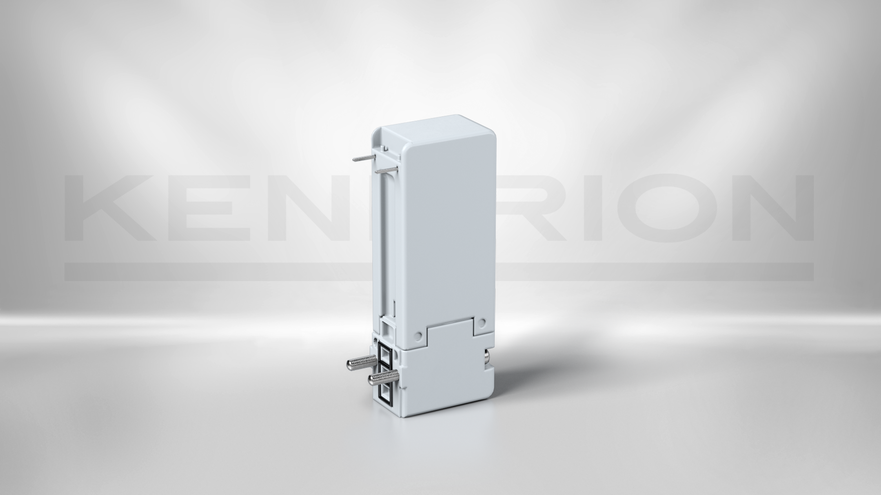

Proportional Valve Type 68P
68.038.50P
2/2 way proportional valves, 15 mm width, two different electrical connection possibilities. The steady valve opening allows a continuous adjustment of the flow. This proportional behaviour between control input and flow follows the valves unique characteristic curve and can be regulated with appropriate sensors and electronics for high precision.
Technical details
| Description | Value |
|---|---|
| Function | 2/2-way NC |
| Pressure range | 0 - 5.0 bar |
| Nominal orifice | 1.9 mm |
| Kv-value | 1.4 l/min |
| Size | 15 mm |
| Actuation type | electrically actuated |
| Duty cycle | 100 % ED |
| Type of electric connection | Plug pins / pins |
| Medium | Filtered (5 µm), lubricated and non lubricated air |
| Nominal power | 4.2 W |
| Nominal voltage | 24 V DC |
| Type of pneumatic connection | Flange |
| Returning mechanism | Spring |
| Protection class | IP65 |
| Ambient temperature | -10 ... +50 °C |
| Valve type | Poppet valve |
| Materials | Base: PBT, seal: NBR |
| Actuation | directly controlled |
| Identification number | 196010 |
