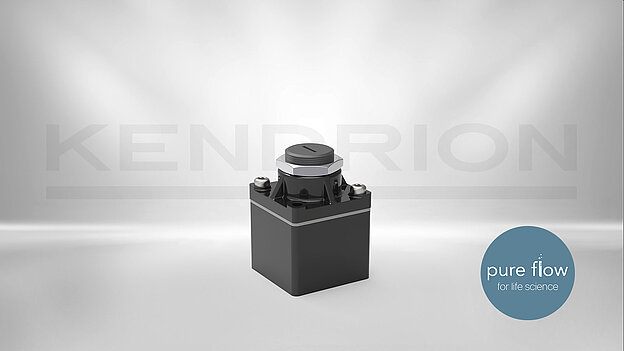

Pressure regulator 48.3x Pure Flow Line
48.3x Pure Flow Line
Pressure regulators made of biocompatible plastic for sensitive applications
The universally applicable flange pressure regulator for base plate mounting is characterized by very good control characteristics for small and medium volume
flows. The rectangular 30x30 mm plastic design is a particularly lightweight version that is also cost-effective and can be easily integrated into existing applications.
Kendrion Pure Flow Line pressure regulators are manufactured in a particularly clean production environment to ensure that they are free from e.g. oil, grease, phthalates in accordance with the stringent cleanliness requirements of ISO 15001 Standards for Anaesthetic and respiratory equipment - Compatibility with oxygen.
Technical details
| Description | Value |
|---|---|
| Max. setting pressure | 10 bar |
| Type of pneumatic connection | Flange on base plate: 2 x 3.2mm diameter |
| Pressure range | 0.2 - 2.5 bar bar |
| Ventilation | Secondary pressure with integrated pressure relief |
| Medium | Non-aggressive media, inert gases, oxygen (others on request) |
| Ambient temperature | 0 ... +60 °C |
| Materials | Wetted material: PA66, stainless steel seal: EPDM; FKM, NBR (others on request) |
| Size | 30 x 30 x 46 mm mm |
