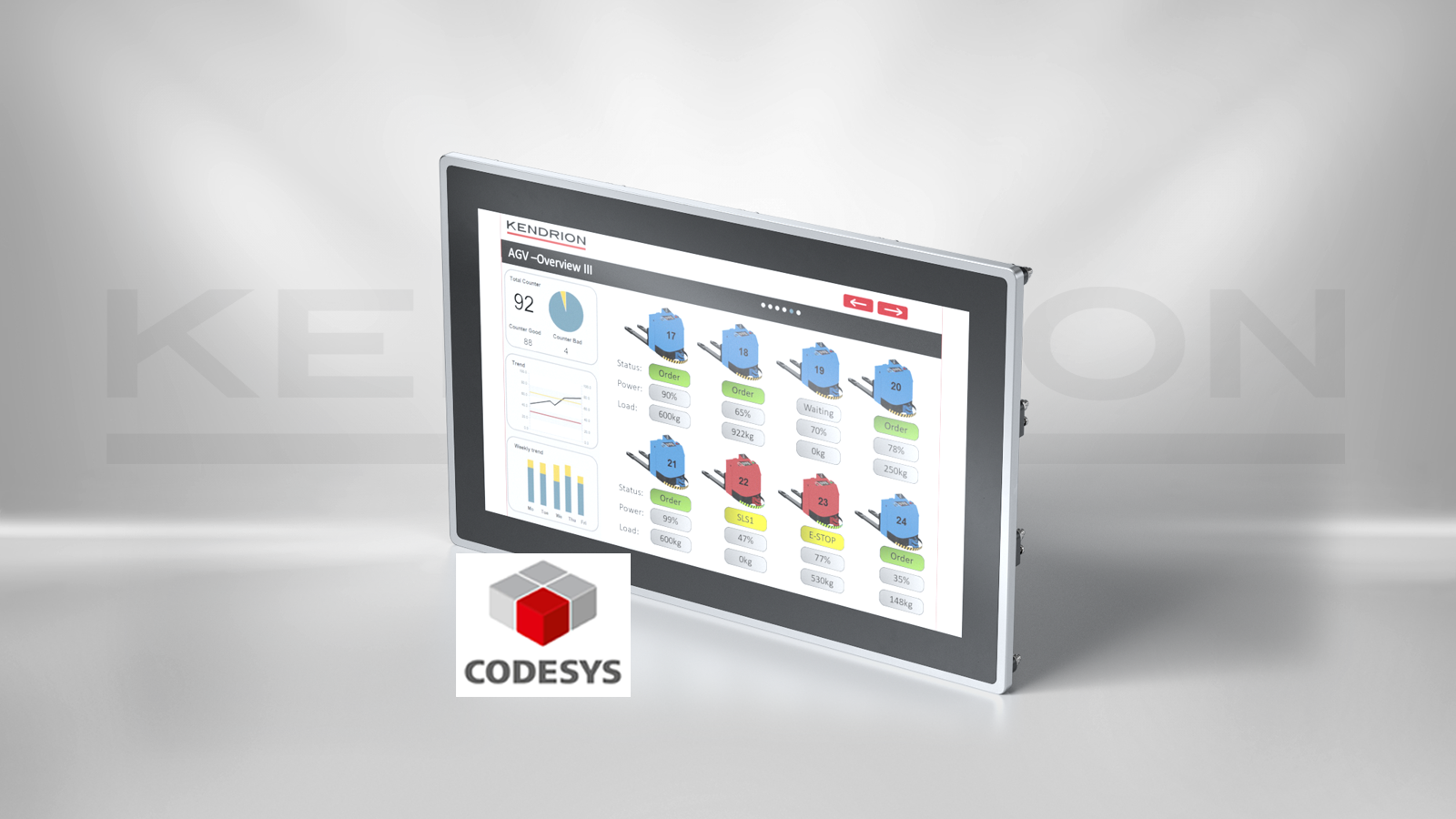

Vico MT 1527
CODESYS PLC WV
67781036
The new Vico MT series comprises powerful display units with multi-touch technology in an industrial-grade unit design.The installed CODESYS PLC software package makes it possible to use control functions in addition to visualization. The visualization is developed together with the PLC application in the free CODESYS Development System.The device communicates with the external fieldbus components via EtherCAT and Modbus.The devices with brilliant IPS display have a robust glass touch screen with an aluminium bezel and are prepared for easy installation in the control cabinet. All components are robust and have long-term available.
- High quality industrial design
- IPS widescreen display with multi-touch glass touch
- PLC and Visualisation with the CODESYS Development System
- High performance and long-term availability
Technical details
| Description | Value |
|---|---|
| Configuration | CODESYS HMI |
| Function | Multi-Touch HMI with control function |
| Model | Panel mounted HMI |
| Product status | Standard product |
| Display | 15.6" wide, IPS |
| Resolution | 1366 x 768 / (16:9) |
| Processor | Arm® i.MX8M Mini ; 4 Cores ; 1.2 GHz |
| Operating system | Linux |
| Software | CODESYS V3 Soft PLC, TargetVisu, WebVisu |
| Main memory | 1 GB |
| Drive | 4 GB eMMC memory, 2 MB NOR Flash, µSD Slot |
| Interfaces | 2 x LAN, 2 x USB, 1 x RS-232 |
| Field bus interfaces | Modbus RTU, Modbus TCP, EtherCAT, OPC UA |
| Housing material | Aluminum frame with glass front |
| Dimensions (W x H x D) | 405 x 254 x 60 mm |
| IP-Protection Class | IP 65 / IP 20 |
| Supply voltage | 24 V DC (+20%, -20%) |
| Temperature range | 0 ... +55°C |
