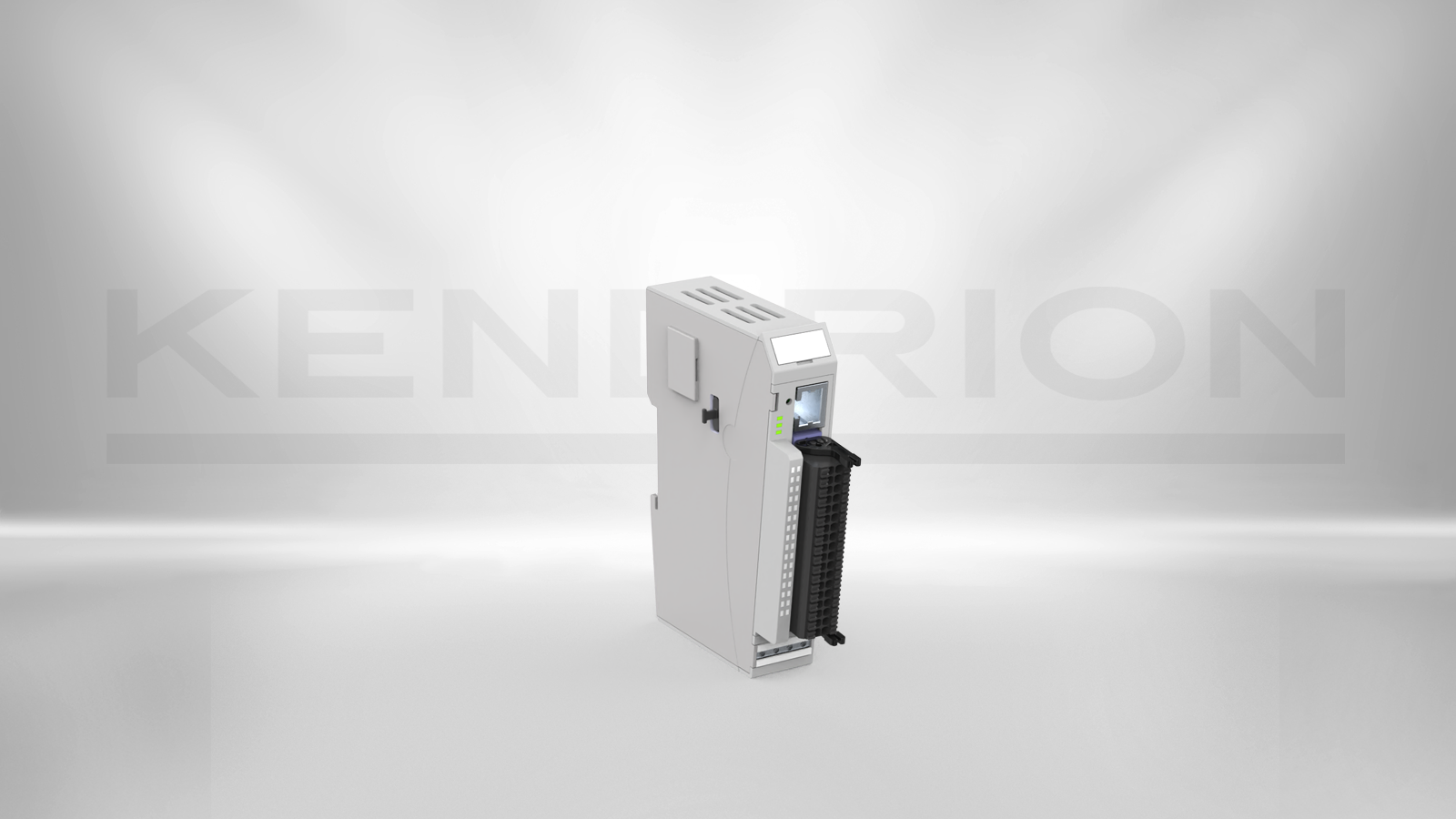

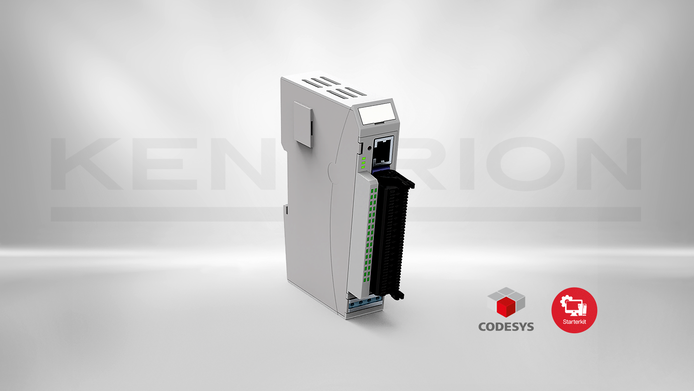

Kuhnke FIO Controller 111
CODESYS PLC with integrated IOs
694 300 11 000
The Kuhnke FIO Controller 111 is a low-cost PLC on ARM basis. It is programmed with CODESYS V3 and matches the FIO I/O modules, which can be attached directly to form a mechanically and electrically homogenous unit. Data with other systems can be exchanged via industrial Ethernet, CAN and RS485. It can be easily integrated by the number of interfaces (Industrial Ethernet, CAN), supported fieldbuses and attachable communication modules into existing control concepts. A built-in µSD-card slot allows local storage of process data and the exchange of application programs. By means of the integrated configurable IOs including fast counters, analogue IOs, pulse-train-outputs (PTO) and encoder inputs a large number of additional functions, e.g. control of 2 axis, can be realized in a cost optimized way.
To operate the machine, we recommend our Vico operating panels with the CODESYS HMI option.
- Flexible with several communication interfaces
- Extendable with Kuhnke FIO modules
- Cost optimized with integrated IOs
- CODESYS V3 with EtherCAT®
Technical details
| Description | Value |
|---|---|
| Configuration | CODESYS PLC |
| Function | Modular PLC with integrated IOs |
| Model | Control cabinet modul |
| Product status | Standard product |
| Processor | 32-bit Arm® Cortex® |
| Operating system | RTOS |
| Software | CODESYS V3 |
| Software options | EtherCAT Master, CANopen Master, Modbus Master |
| Main memory | 32 MB |
| Non-volatile memory | 8 kByte |
| Data memory | 16 MB Flash memory |
| Drive | µSD card up to 32 GB |
| Interfaces | LAN, CAN, RS-485, EtherCAT-E-Bus |
| Digital I/Os (integrated) | 8 x DI 24 V (adjustable filter times), 1 x DI 24 V (interrupt-capable), 8 x DO (4 x 24 V 0,5 A (HighSide) / 4 x 24 V 0,2 A (PushPull)) |
| Analogue I/Os (integrated) | 2 x AI (0…10 V, 0/4 …20 mA, 12 Bit), 2 x AO (0…10 V, 0/4 …20 mA, 12 Bit) |
| Integrated function | 2 x AI (0…10 V, 12 Bit), 4 x event counter (200kHz), 2 x Encoder A-B-Z (100 kHz), 2 x frequency generator or 4x PTO or 4 x PWM (100 kHz), (special functions reduce the no. of available digital IOs) |
| Field bus interfaces | EtherCAT, CANopen, Modbus RTU and TCP |
| Modular expansion | Expandable with FIO I/O modules |
| Housing material | Aluminium frame, plastic housing |
| Dimensions (W x H x D) | 25 x 120 x 90 mm |
| IP-Protection Class | IP 20 |
| Supply voltage | 24 V DC (-15% ... +20%) |
