Kuhnke FIO
Drive Control
694 454 16

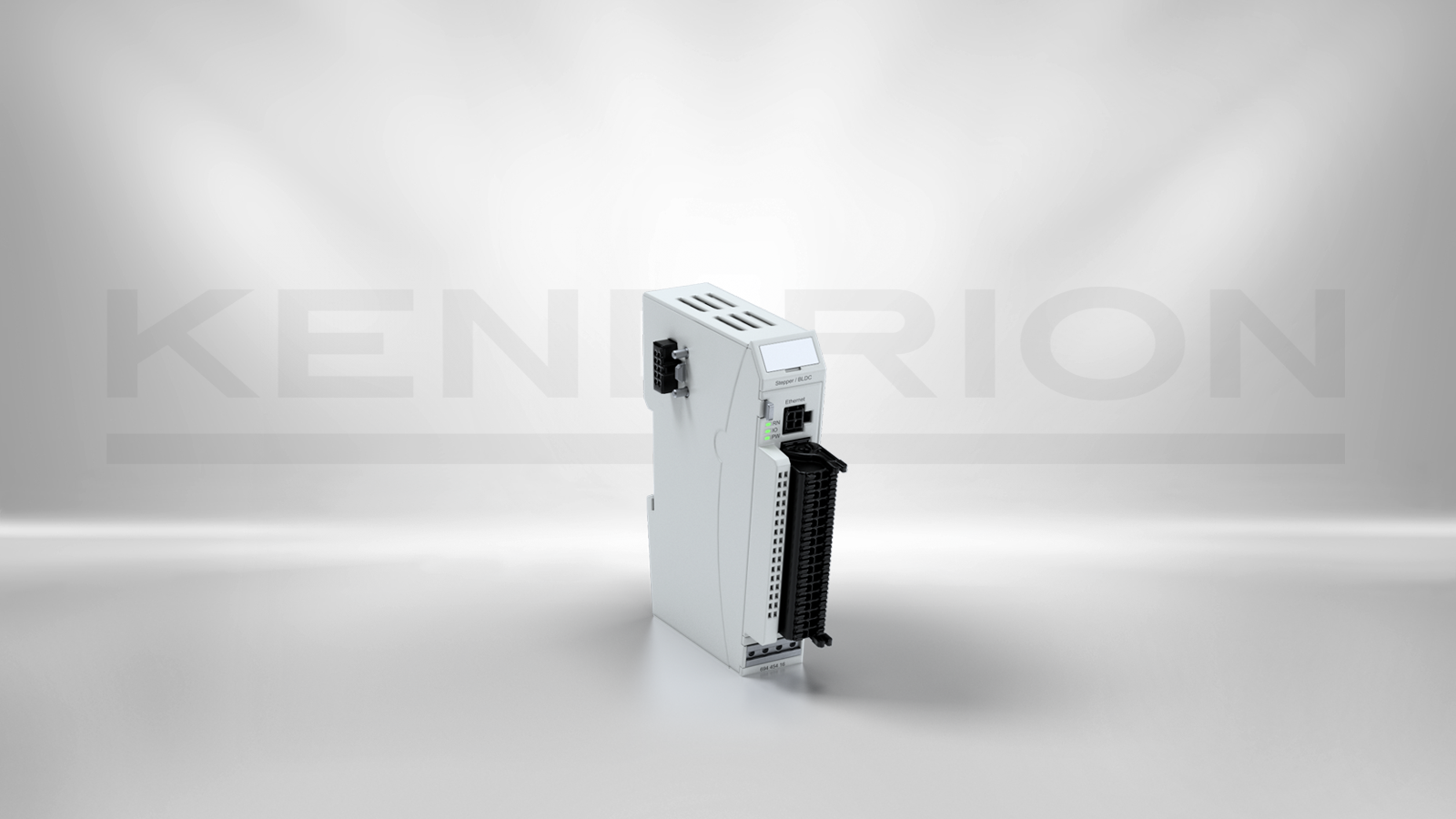

This extremely compact drive controller is the general-purpose solution for both, stepper motors and brushless DC motors. Magnetic field-orientated vector control and encoder feedback plus sine wave commutation ensure highly dynamic An integrated web server helps to set up the unit. Thus, very efficient, smooth and balanced operation at low running noise - particularly when it comes to driving stepper motors. Step errors are corrected along the path already and the load angle error is eliminated within a single full step. Owing to continuous motor current monitoring, the control unit supplies just as much power as necessary, thus making the system very energy-efficient. In order to reduce the certification efforts the module already has an UL-certification for the US and the Canadian market (cULus).
Operating modes:
- Interpolation (cyclic synchronous position mode)
- Homing Mode
- Positioning mode (absolute / relative)
- Speed mode, Torque mode
Technical details
| Description | Value |
|---|---|
| Function | motion control |
| Model | Control cabinet modul |
| Digital I/Os (integrated) | Outputs: Motor, Brake / Inputs: Incremental encoder, Hall encoder, 5 DI |
| Integrated function | interpolation positioning-operation speed-operation torque-regulation reference-motion according to DSP402 |
| Interfaces | Motor-types: 2 phase step-motor or brushless DC motor with/without incremental-encoder connection voltage: 12 - 72 VDC Motor-nominal-current : 5A Options: LAN-interface |
| Product status | Standard product |
| Field bus interfaces | EtherCAT |
| Type of connection | female plug with PUSH IN spring connection |
| Housing material | Aluminium frame, plastic housing |
| Dimensions (W x H x D) | 25 x 120 x 90 mm |
| IP-Protection Class | IP 20 |
| Supply voltage | 24 V DC (-15% ... +20%) |
| Operating temperature | 0 ... +55°C |
| Certifications | CE, UL |
