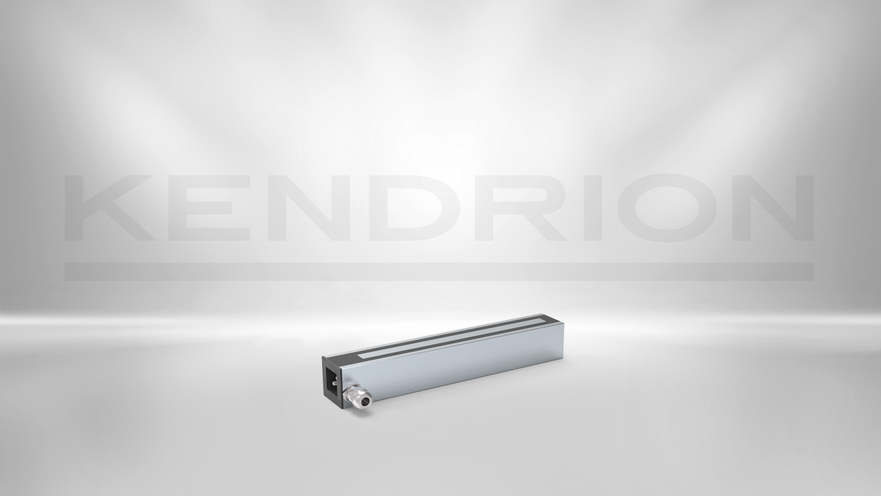

Electro Holding Magnet 32x201
10030001
Holding magnet for holding or clamping ferromagnetic workpieces. The DC-excited coil achieves a holding force of up to 30,000 N when energized. When the supply voltage is switched off, the workpiece to be held falls off. The holding solenoid is maintenance-free and are characterized by a low operating current at high holding forces.
The holding solenoid is available in different sizes in round, flat or square design.
Technical details
| Description | Value |
|---|---|
| Nominal voltage | 24 V |
| Duty cycle | 100 % |
| Power consumption | 12.9 W |
| Holding force | 2100 N |
| Design | square |
| Dimensions | 201,31,32 |
| Holding permanentmagnetic? | no |
| Thermal class | E 120 |
| Connection | terminal clamp |
