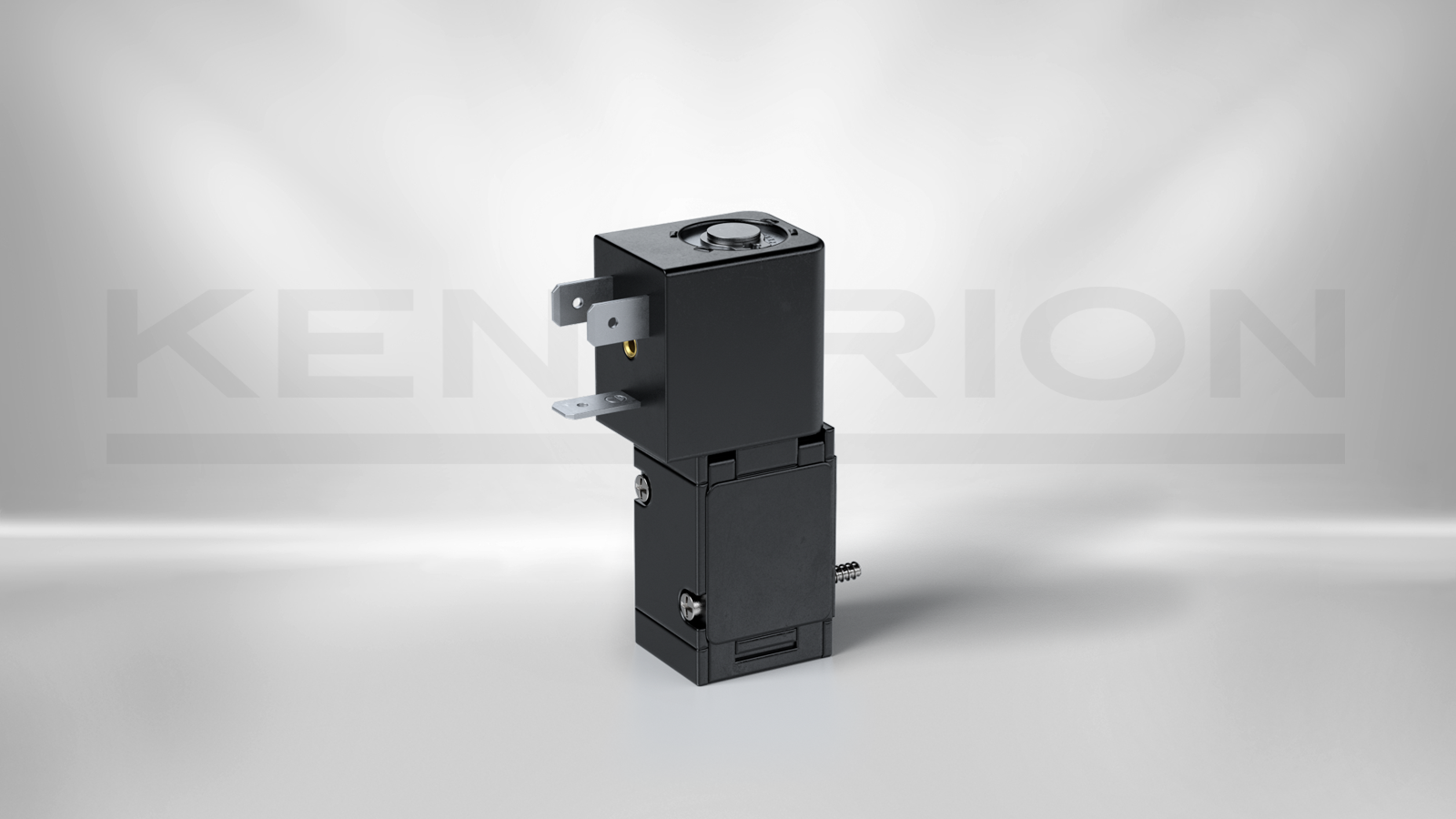

Fluid Isolation Valve Type 97
97.110.00.00
The fluid isolation valves with their chemical resistance, compact size and high flow rates are suitable for many applications. On request other sealing materials like EPDM or FKM can be used. Other technical data like electrical connections or the operating pressure range can be adapted.
Technical details
| Description | Value |
|---|---|
| Function | 3/2 way NO |
| Pressure range | -0.9 - 3.5 bar |
| Nominal orifice | 3.5 mm |
| Type of pneumatic connection | Flange |
| Kv-value | 3.5 l/min |
| Size | 22 mm |
| Actuation type | electrically actuated |
| Duty cycle | 100 % ED |
| Type of electric connection | Flat plug receptacles 6.3 x 0.8, industry standard fitting for plug-in connector type B according to EN60529 (not included in delivery) or leads |
| Medium | Water and filtered (5 µm), lubricated and non lubricated air |
| Nominal power | 4.6 W |
| Nominal voltage | 24 V DC |
| Nominal current | 250 mA |
| Returning mechanism | Spring |
| Protection class | IP65 (with plug-in socket and occupied pneumatic connections or leads) |
| Ambient temperature | 0 … + 55 °C |
| Valve type | Poppet valve |
| Materials | Housing: PPSU, sealing: either EPDM, NBR or FKM |
| Actuation | directly controlled |
