ENI Studio
Integration of safety solutions into proprietary control systems
612 001 20
Seamless integration of safety solutions into proprietary control systems

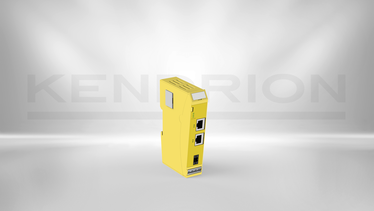

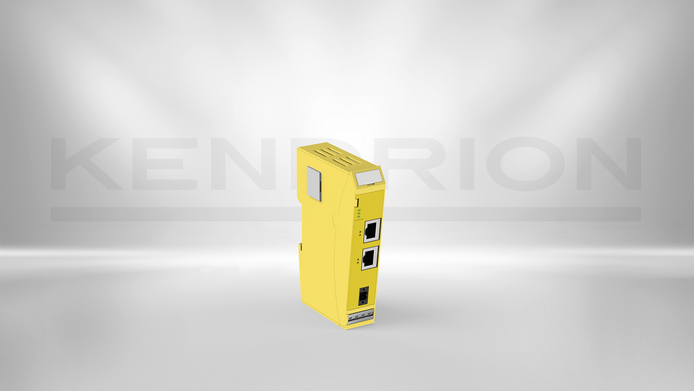

The ENI-Studio is an analysis and configuration tool that has been specially developed for the precise localisation and handling of safety data in the EtherCAT frame. It enables easy integration of the Kendrion Safety PLC into proprietary EtherCAT master systems, such as those typically used in AGV and robotics systems.
The software provides all the information contained in the ENI file to correctly initialise all devices, including the safety I/Os, and which is required for copying the safety data in the cyclic telegram.
The result is a complete process image that includes both standard and safety data, guaranteeing the seamless integration of Kendrion safety components into your existing system.
The new Controller 328 App from Kendrion is now equipped with the FLECS Web Browser. This integration enables machine builders to easily and conveniently download automation apps and integrate them into their machine controllers. This means you benefit from a flexible and powerful solution that optimises your automation processes.
- Comprehensive ENI file analysis for complete recording of the process image including safety data
- Visualisation of the input and output range
- Precise positioning of the safety data in the EtherCAT frame
- Intelligent variable identification for exchange and safety I/O variables
- Copy functions for data exchange between input and output area
- Integrated EtherCAT master for direct initialisation and tests
Technical details
| Description | Value |
|---|---|
| Integrated function | ENI file analysis for safety applications Variable identification EtherCAT master for tests |
| Product status | Technology |
| Application | Analysing safety data in the EtherCAT frame for non-CODESYS masters |
| Provision | Installation from the Kendrion Exchange area |
| Requirements | CODESYS Development System |
