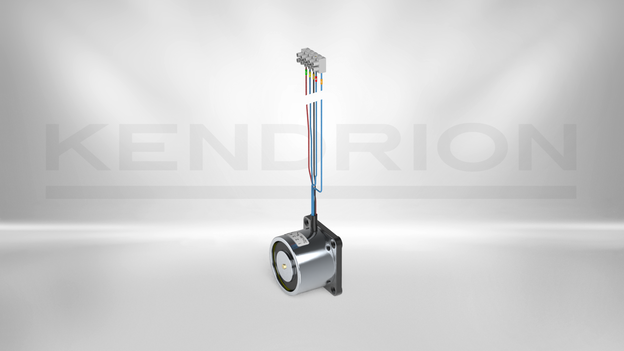

Door holding magnets GTR070
GTR070.508001
![](/fileadmin/_processed_/2/7/csm_kendrion-door-holding-magnet-gtr070-gtr070508001_07e8ae5159.png)
The door holding magnets are mainly used as holding devices on fire protection doors. They hold them in place when open. Controlled by a fire alarm or smoke protection control panel, they release the closures by interrupting the power supply in the event of a fire hazard. Product features: - Coil vacuum encapsulated (IP65) - VdS quality-controlled - Tested according to EN1155 & EN 14637 - Optimised design and quality - Accessories: Anchor plate
Technical details
Description | Value |
---|---|
Nominal voltage | 24 V |
Duty cycle | 100 % |
Power consumption | 1.5 W |
Holding force | 1372 N |
Design | With base plate, micro switch |
Connection | Terminal clamp |
