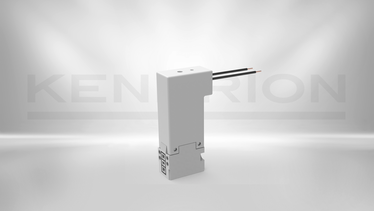

Solenoid Valve Type 63.0
63.030.30 12V DC
![](/fileadmin/_processed_/6/f/csm_kendrion-solenoid-valve-type63-6303030_433c13dd9a.png)
10 mm width, three different electrical connection possibilities. Optionally with manual override operation.
Technical details
Description | Value |
---|---|
Function | 3/2-way NC |
Nominal voltage | 12 V DC |
Nominal current | 75 mA |
Returning mechanism | Spring |
Protection class | IP65 |
Ambient temperature | -10 ... +50 °C |
Valve type | Poppet valve |
Materials | Base: PBT, seal: NBR |
Actuation | directly controlled |
Identification number | 75874 |
Pressure range | 0 - 5 bar |
Nominal orifice | 0.9 mm |
Type of pneumatic connection | Flange |
Kv-value | 0.33 l/min |
Size | 10 mm |
Actuation type | electrically actuated |
Duty cycle | 100 % ED |
Type of electric connection | Plug pins / pins |
Medium | Filtered (5 µm), lubricated and non lubricated air |
Nominal power | 1.8 W |
