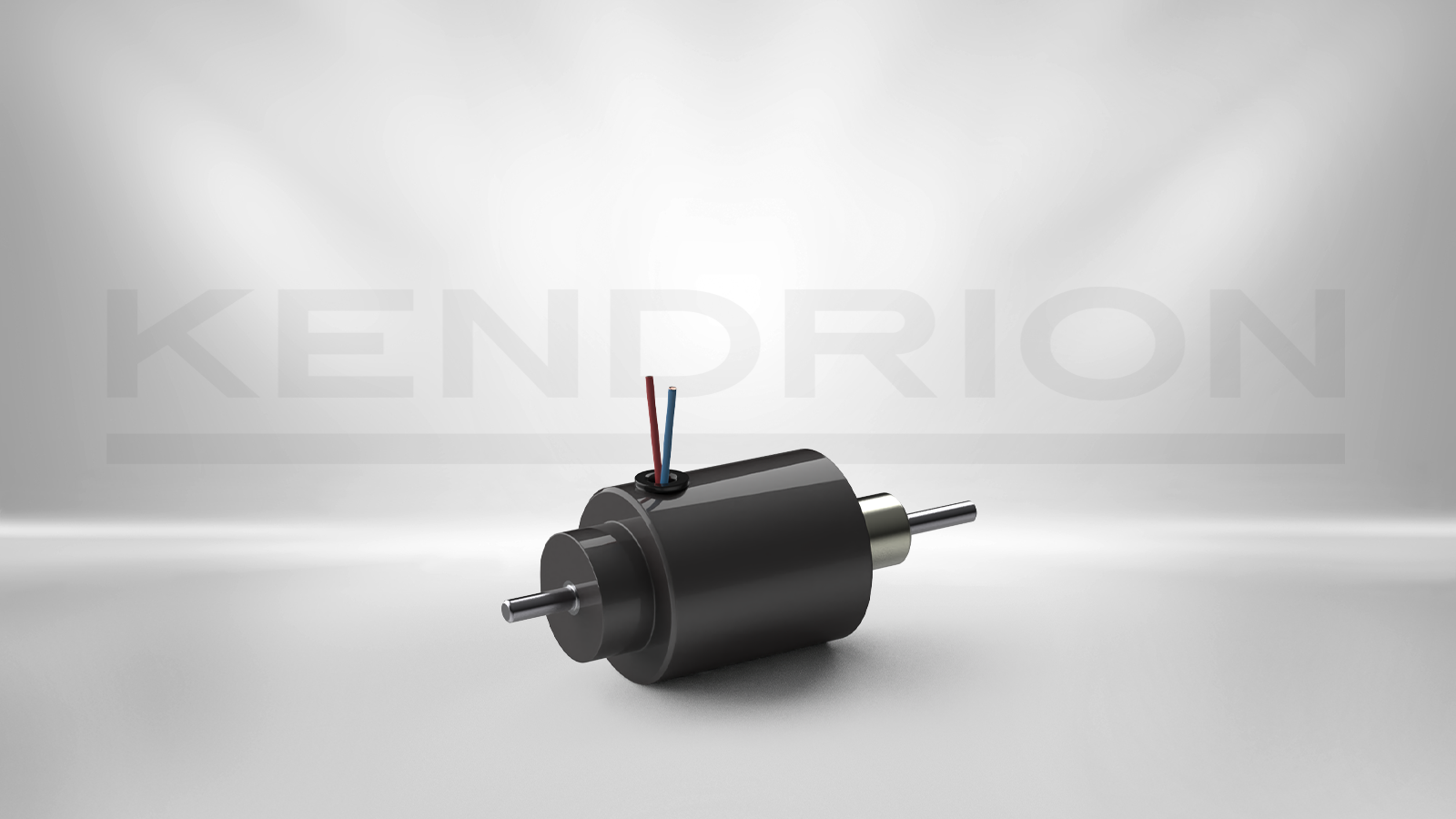

High Power Linear Solenoid RM26
RM 26-R-F-24V DC 100 ED
Linear solenoid in enclosed design with maintenance-free armature bearing for maximum durability. Available as combi type solenoid, also with integrated return spring. Starting with size RM040 of the modular system, the heavy duty solenoids are available in a wide range of specifications, including splash-proof models. Our preferred types are available in small quantities from stock. Other versions or other voltages are available on request. More information can be found in the download area.
Technical details
| Description | Value |
|---|---|
| Duty cycle | 100 % |
| Power consumption | 5.5 W |
| Stroke | 4 mm |
| Inital force | 1.9 N |
| Nominal voltage | 24 V |
| End force | 6 N |
| Return spring | Yes |
| Dimensions (length, width, height) | 26 x 26 x 30 mm |
| Length | 26 |
| Width | 26 |
| Height | 30 |
| Design | No |
| Protection class | IP 40 |
| Thermal class | B, 130 |
| Connection | 10 cm lead |
| Solenoid weight | 117 g |
| Armature weight | 24 g |
| Product Line | High Power Linear Solenoids |
