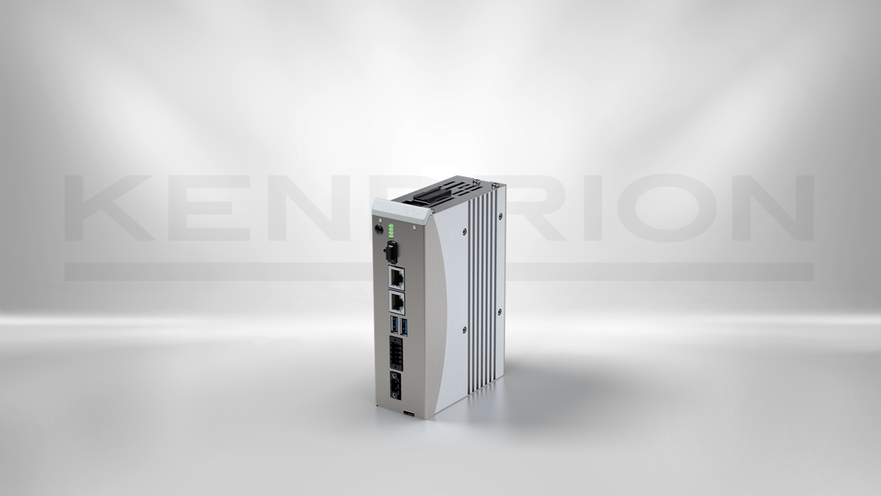

Econo 226 WV SM
640 200 209 012 400
The fanless PLC with iMX6 Quad Core processor technology combines compactness with durability and performance. The device has an integrated flash disk and an SD card slot that is easily accessible from the outside. USB interfaces allow the use of additional removable storage devices or external peripherals.
Single- or multi-axis movements up to curve writing can be configured in the familiar IEC 61131-3 development interface - together with the logic application.
Kuhnke controllers with CODESYS SoftMotion allow the user extensive project planning variants for his motion tasks. Among other things, certified motion modules according to PLCopen and the full scope of the IEC 61131-3 programming interface are available for this purpose.
As user interface, we recommend our Vico operating panels or, in conjunction with the CODESYS TargetVisu (TV) option, a commercially available industrial monitor with HDMI interface.
- Fanless i.MX6-QuadCore processor technology
- Stable, compact housing, DIN-rail mounting
- CODESYS Soft PLC with WebVisu and SoftMotion
Technical details
| Description | Value |
|---|---|
| Configuration | CODESYS Compact PLC |
| Function | Compact CODESYS PLC |
| Model | Control cabinet modul |
| Product status | Standard product |
| Processor | Freescale i.MX6X Quad Core; 1 GHz |
| Graphics Interfaces | HDMI interface, 1920x1080p60 (Full HD) in connection with TargetVisu option |
| Operating system | Linux RT |
| Software | CODESYS V3 Soft PLC, WebVisu |
| Main memory | 1024 MB RAM |
| Non-volatile memory | Stored in flash memory |
| Data memory | Flash disk 256 MB, 1 GB pSCL eMMC |
| Drive | SD card |
| Interfaces | 2 x Ethernet, 1 x RS232, 1 x RS485, 2x CAN, 2 x USB 2.0 |
| Digital I/Os (integrated) | - |
| Field bus interfaces | EtherCAT, OPC UA, CANopen, Modbus TCP/RTU |
| Housing material | Stainless steel, heat sink made of aluminum |
| Mounting | DIN-rail mounting |
| Dimensions (W x H x D) | 50 x 190 x 115 mm |
| IP-Protection Class | IP20 |
| Supply voltage | 24 V DC (± 20%), incl. 1 second UPS |
